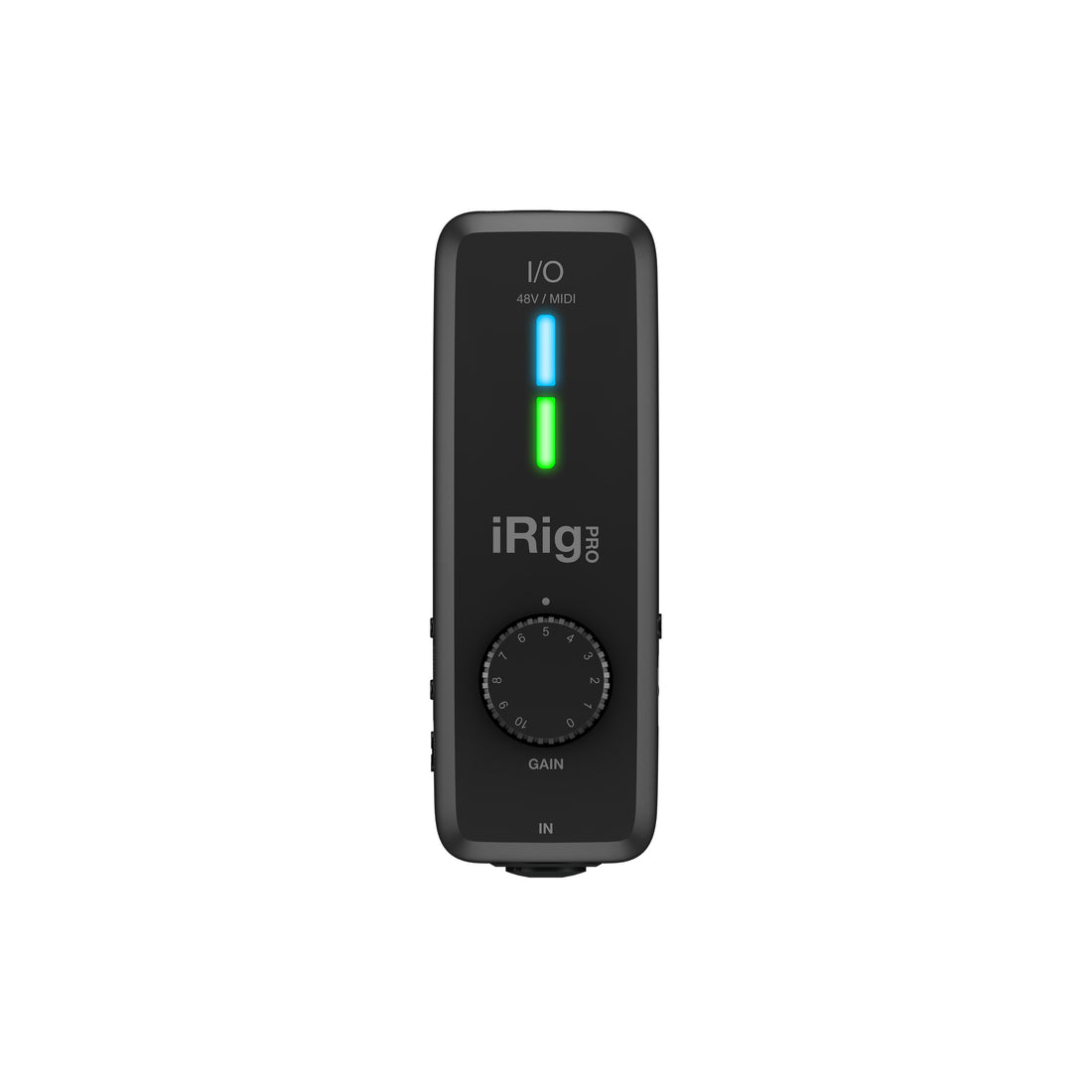

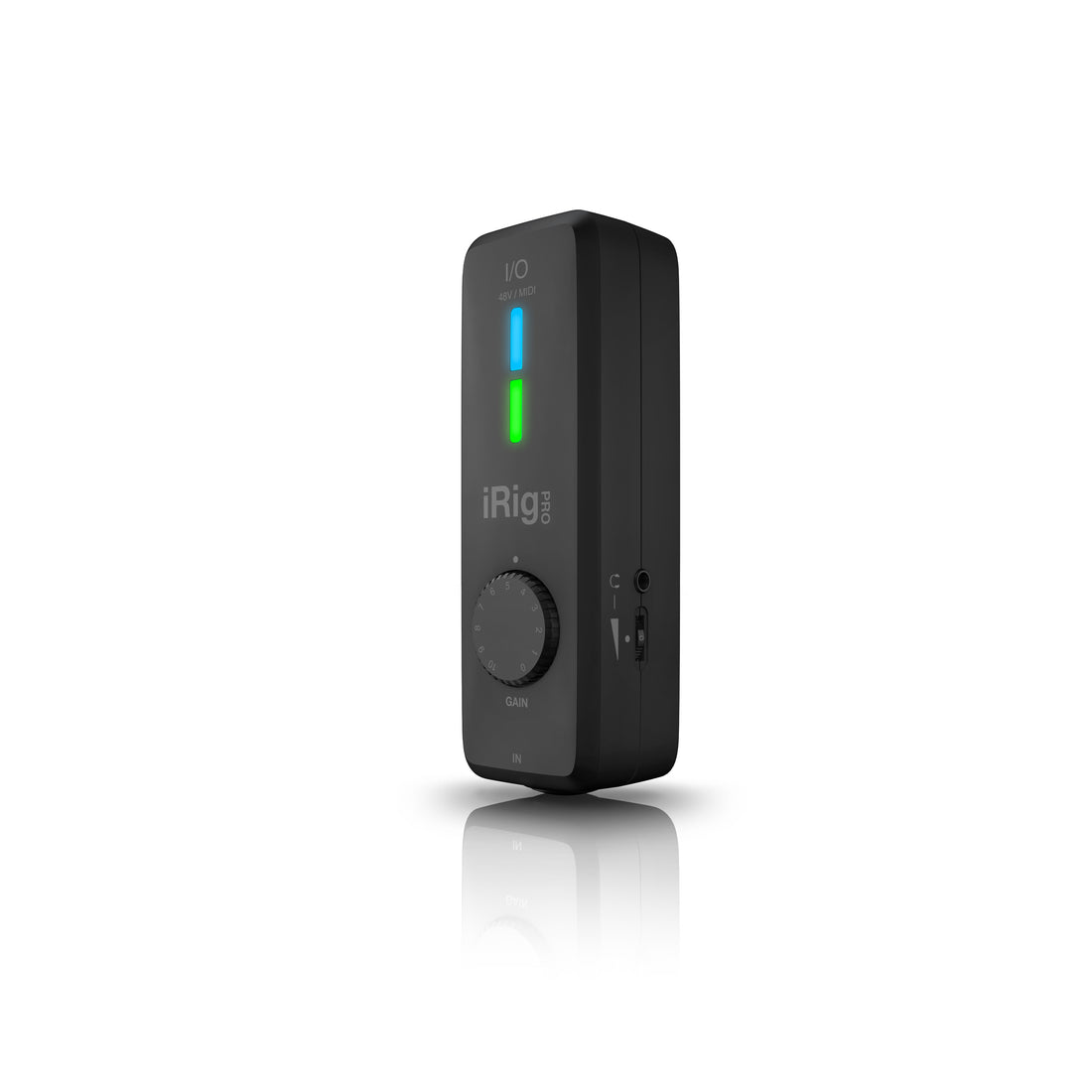

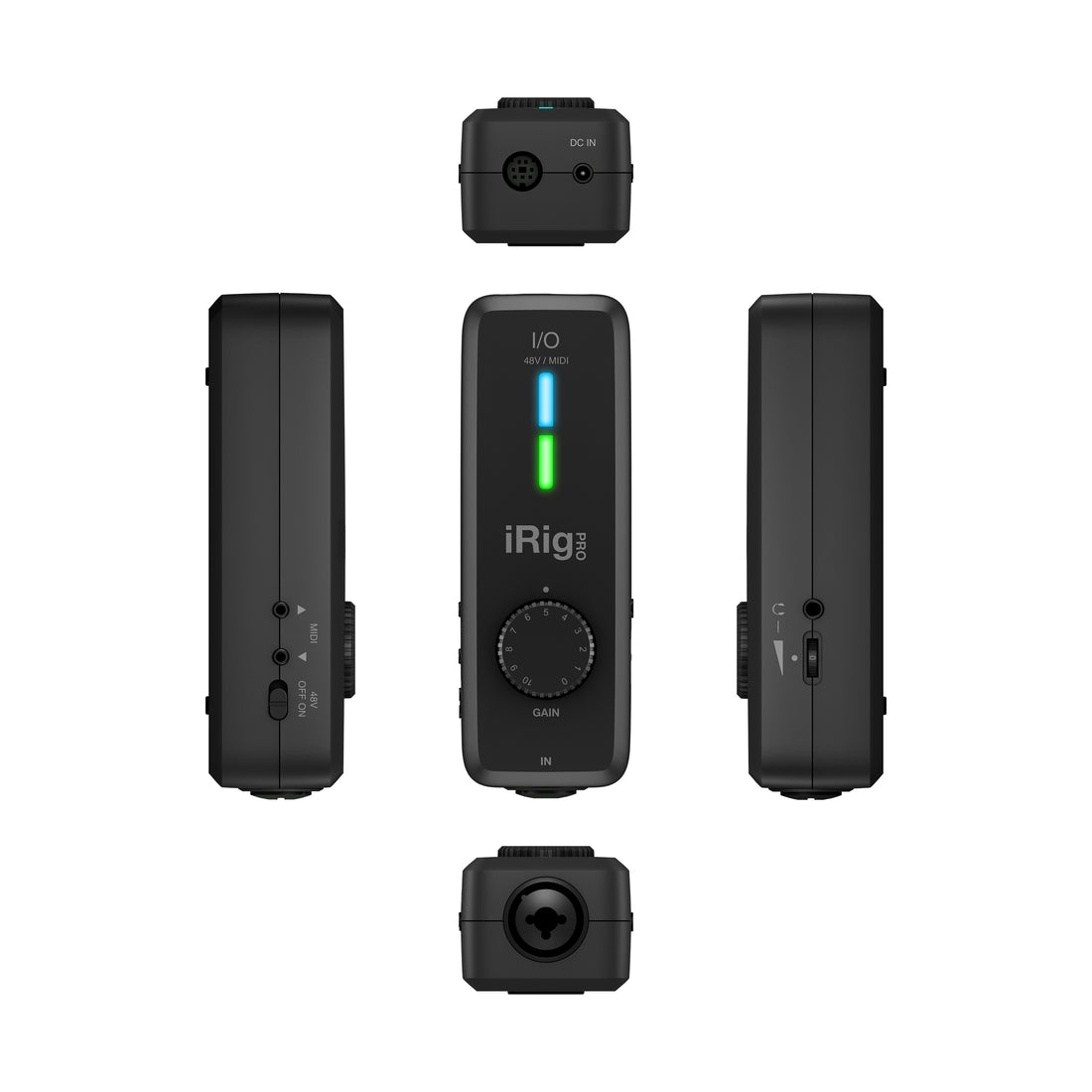

iRig Pro I/O

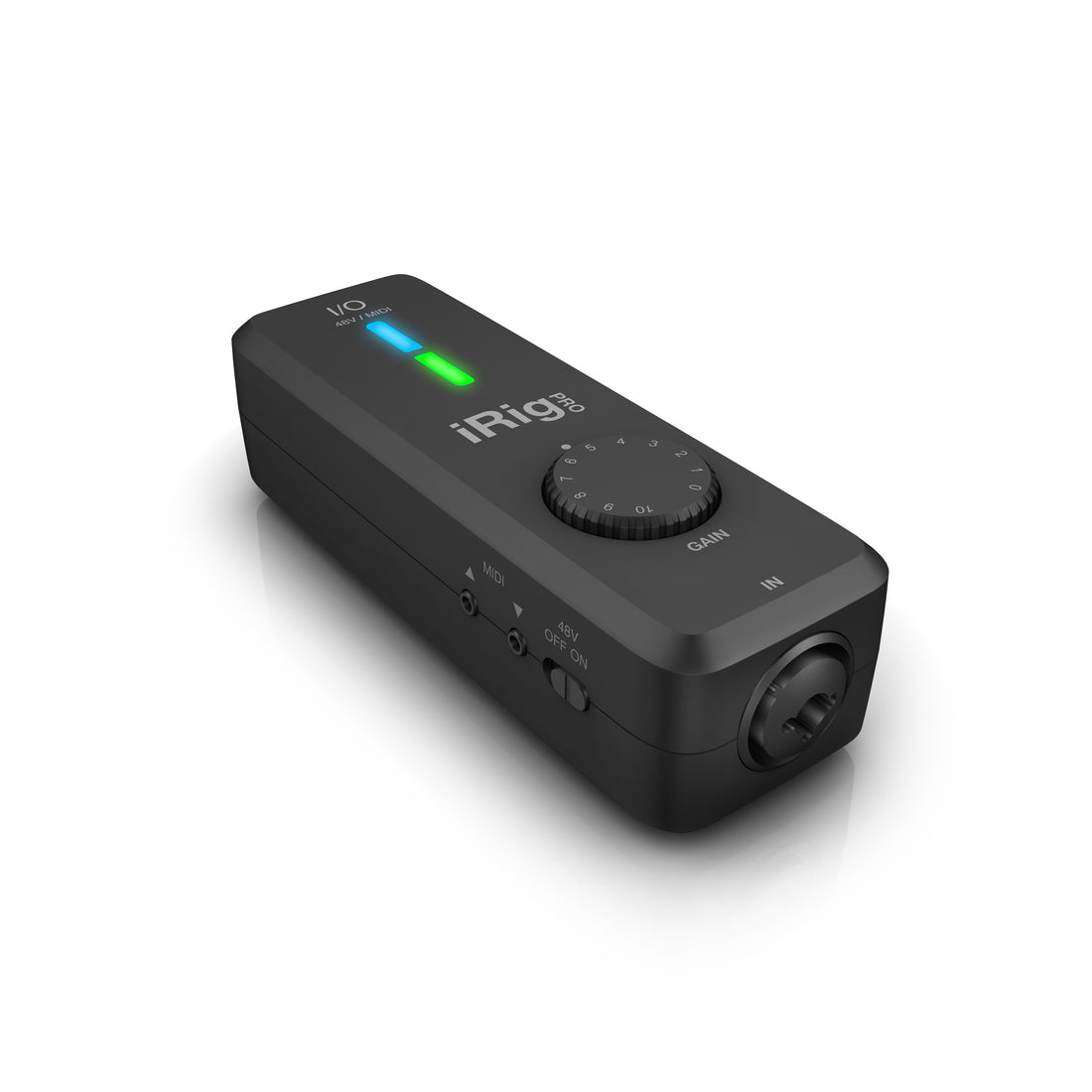

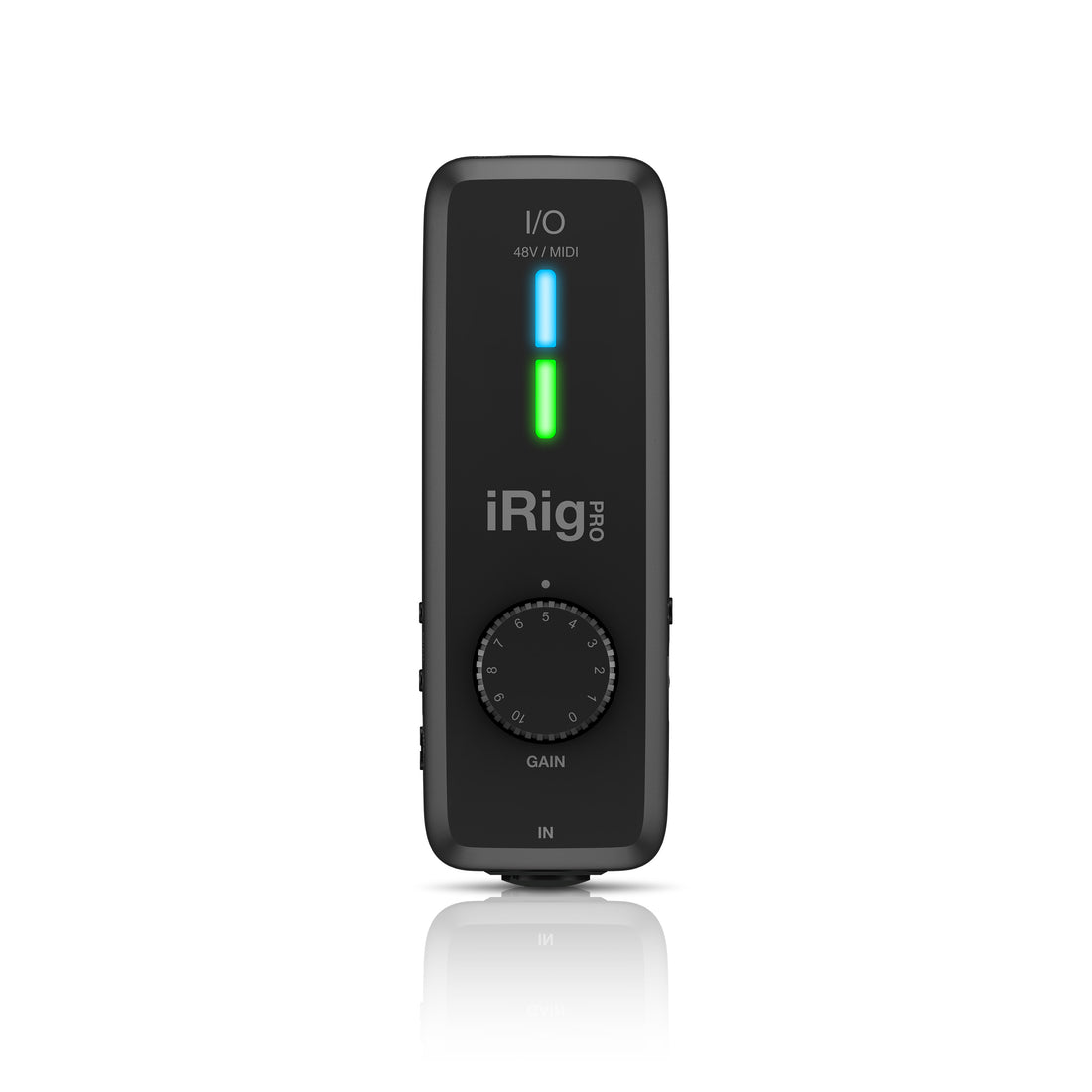

Your new pocket-sized mobile studio
Professional mobile recording interface for all devices
$169.99($207.39 incl. VAT)
1-in/1-out audio and MIDI interface
Works with iPhone, iPad, Mac and PC

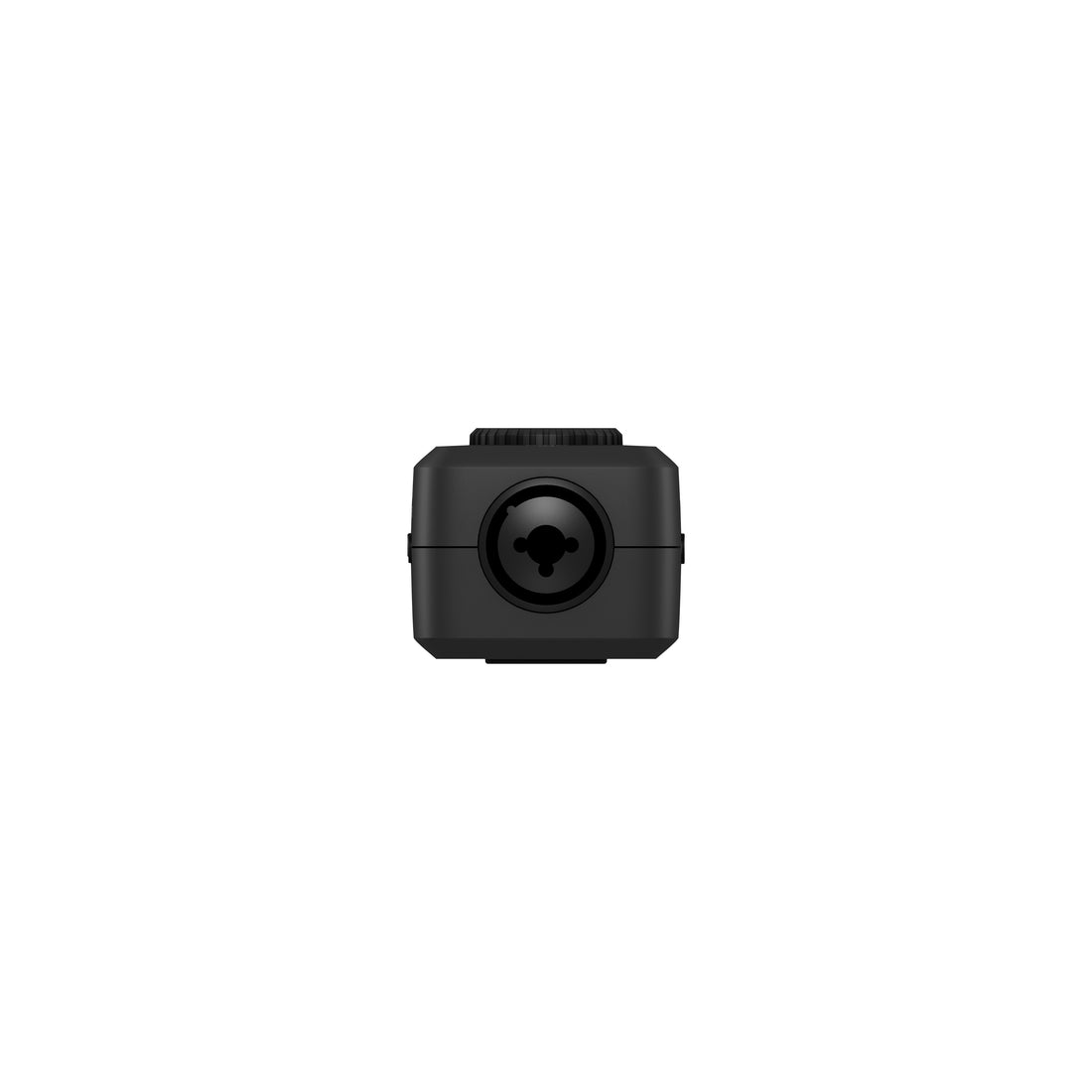

Combo XLR/TRS input with phantom power
MIDI In/Out
24-bit/96 kHz
Works with iPhone, iPad, Mac and PC
Combo XLR/TRS input with phantom power
MIDI In/Out
24-bit/96 kHz
See Specs
iRig Pro I/O Specifications
Microphone Input
Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: 3.2 kOhms
Gain Range: 40 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS

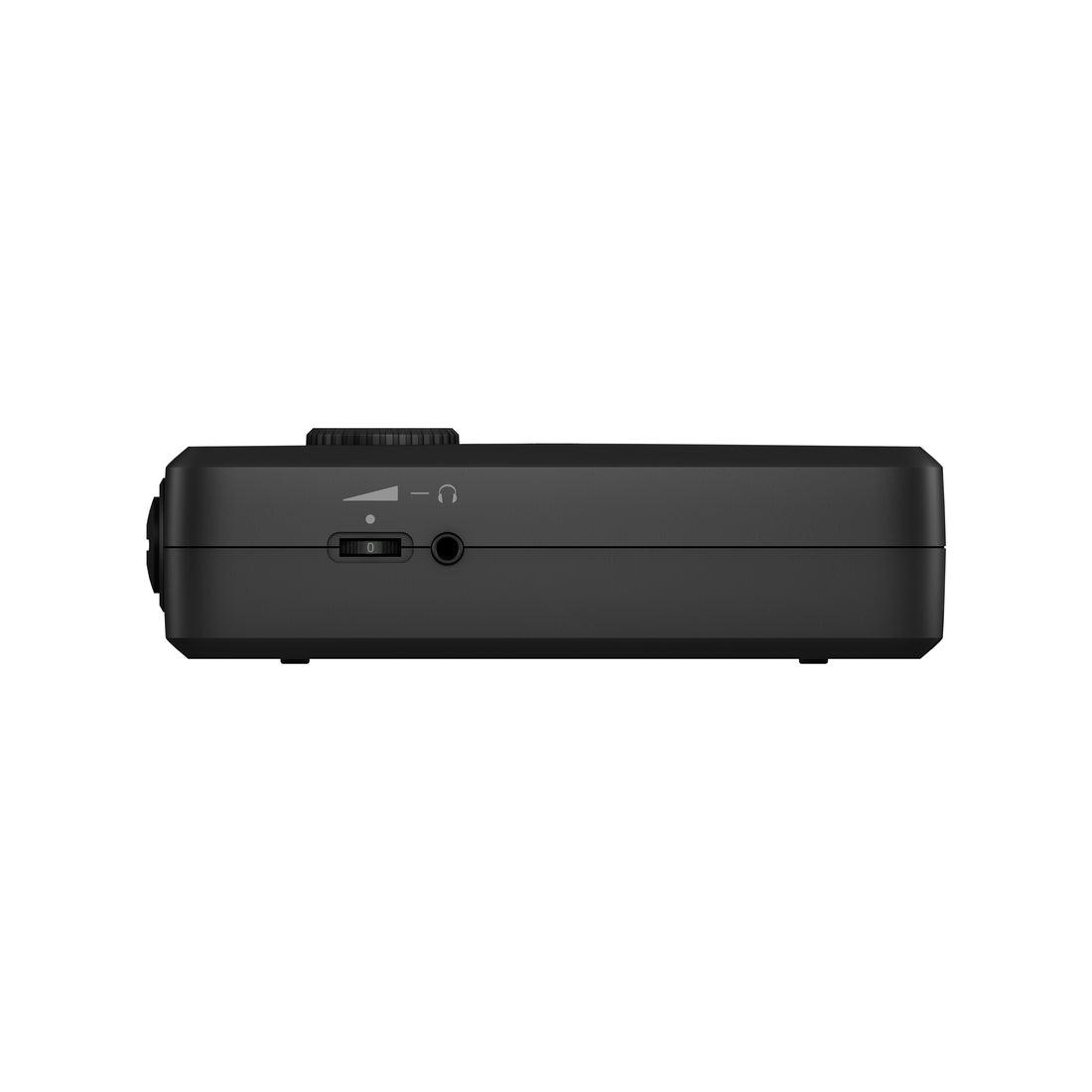

Stereo Headphone Output
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Control numbered thumbwheel
Headphone Level Power 100mW into 50 Ohms

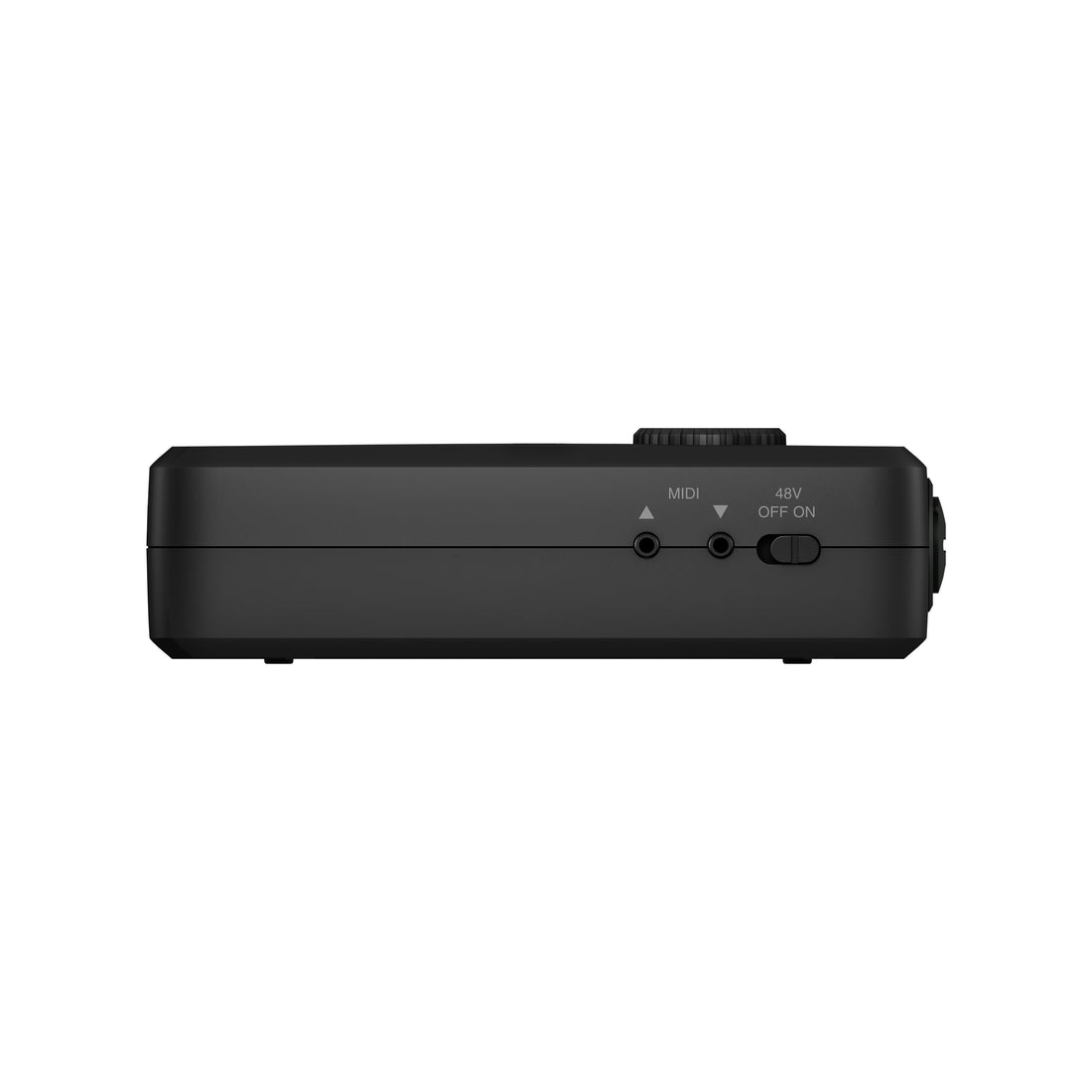

MIDI Input/Output
Connector: 2x2.5mm TS Jack
Other Input/Output

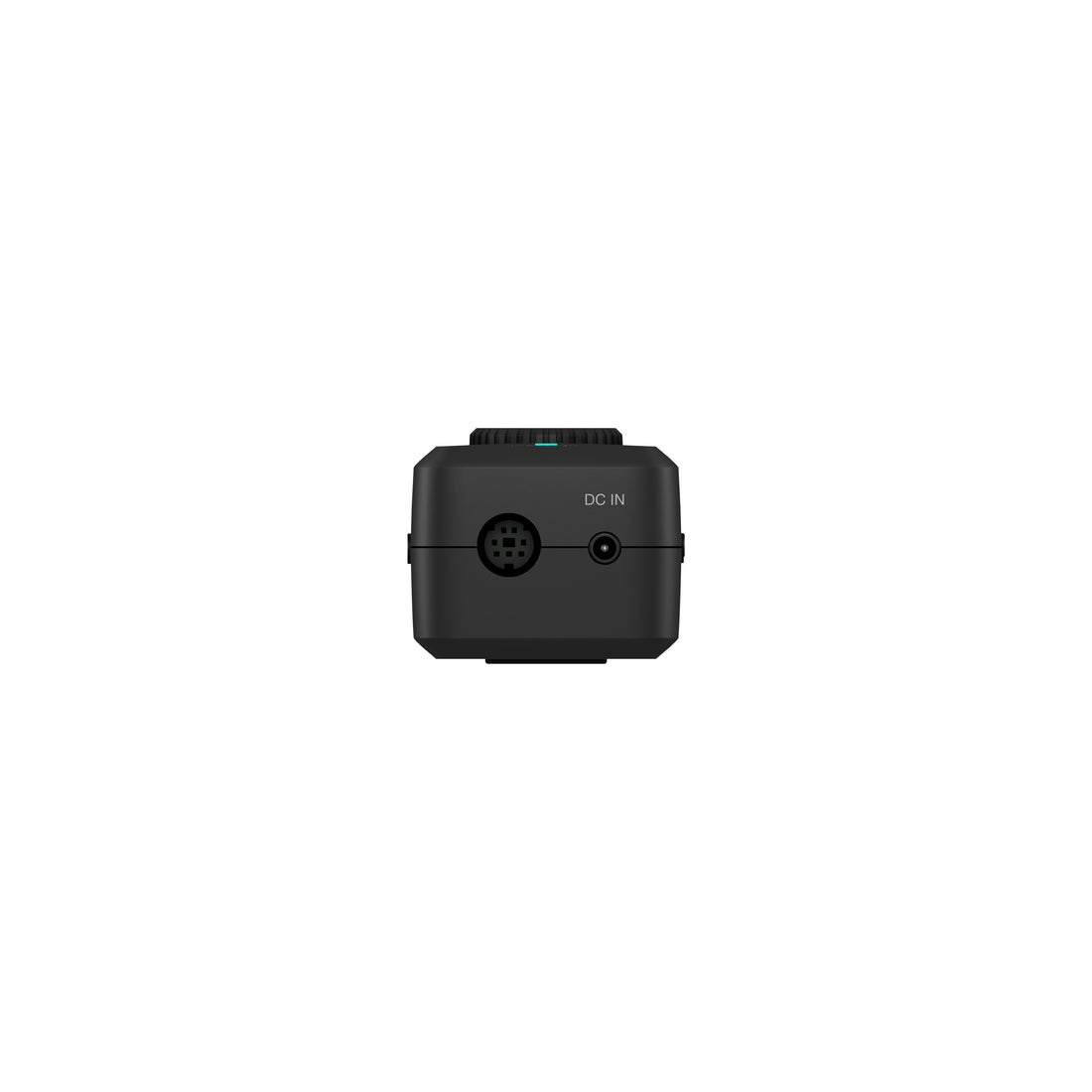

DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN
Common
Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power: USB bus powered when used with a computer; battery powered (2xAA included) when used with an iOS device; DC power supply (not included, iRig PSU 3A sold separately)
Package includes
iRig Pro I/O universal Audio-MIDI interface
Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
USB-A to Mini-DIN connection cable (60cm/23.62")
USB-C to Mini-DIN connection cable (60cm/23.62")
2.5mm TRS male to MIDI female adapter (10cm / 3.9")
2 x 1.5V AA Battery
Velcro strip
Dimensions
Size: 43mm/1.69" x 127mm/5" x 37mm/1.46"
Weight: ~120g/4.23oz (batteries excluded)
Compatibility
iOS Devices
Made for: iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation.
Also compatible with all newer iPhone, iPad and iPod touch models.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed.
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities. Micro-USB-OTG to Mini-DIN cable (sold separately) is required.
Click to zoom · Esc to close
Your new pocket-sized mobile studio

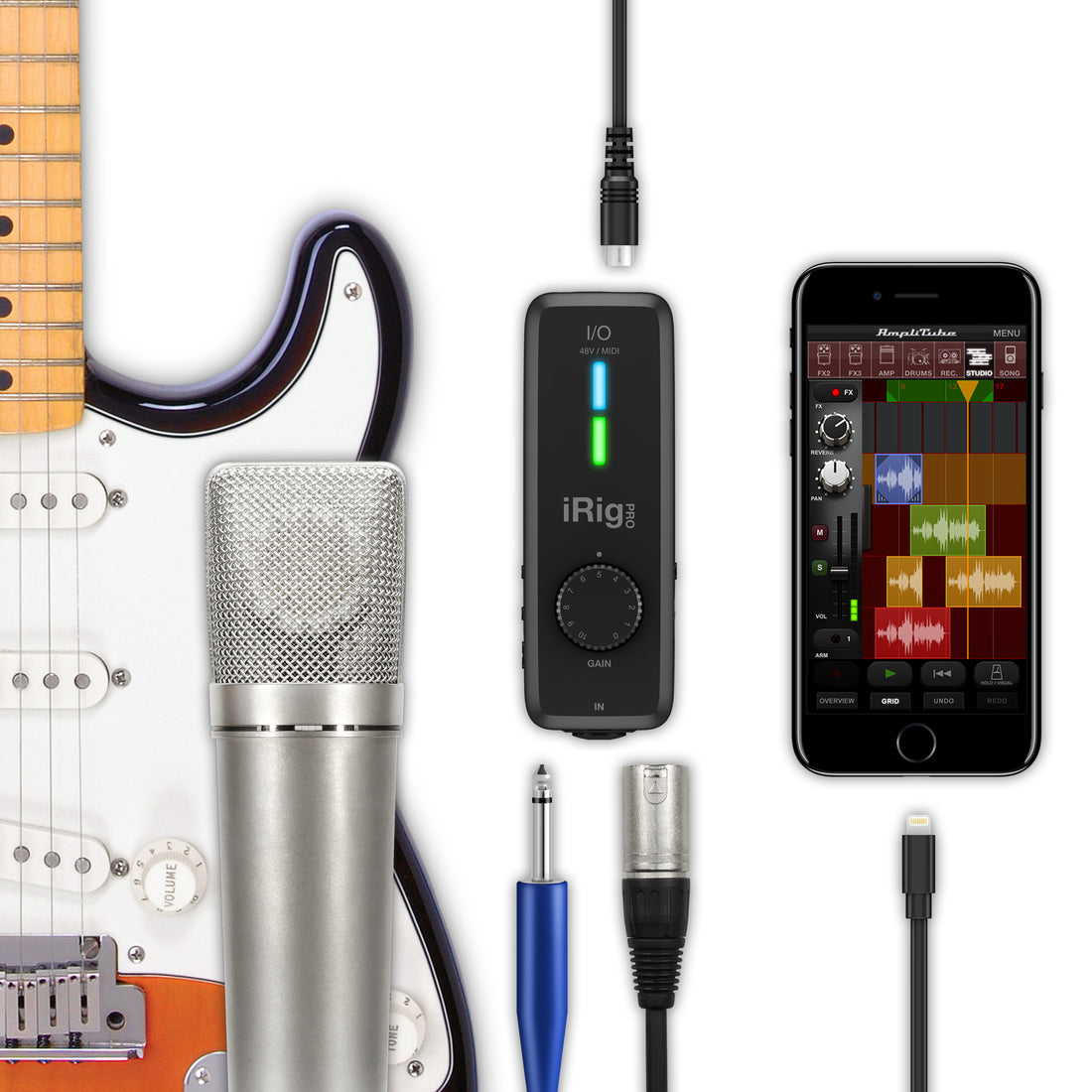

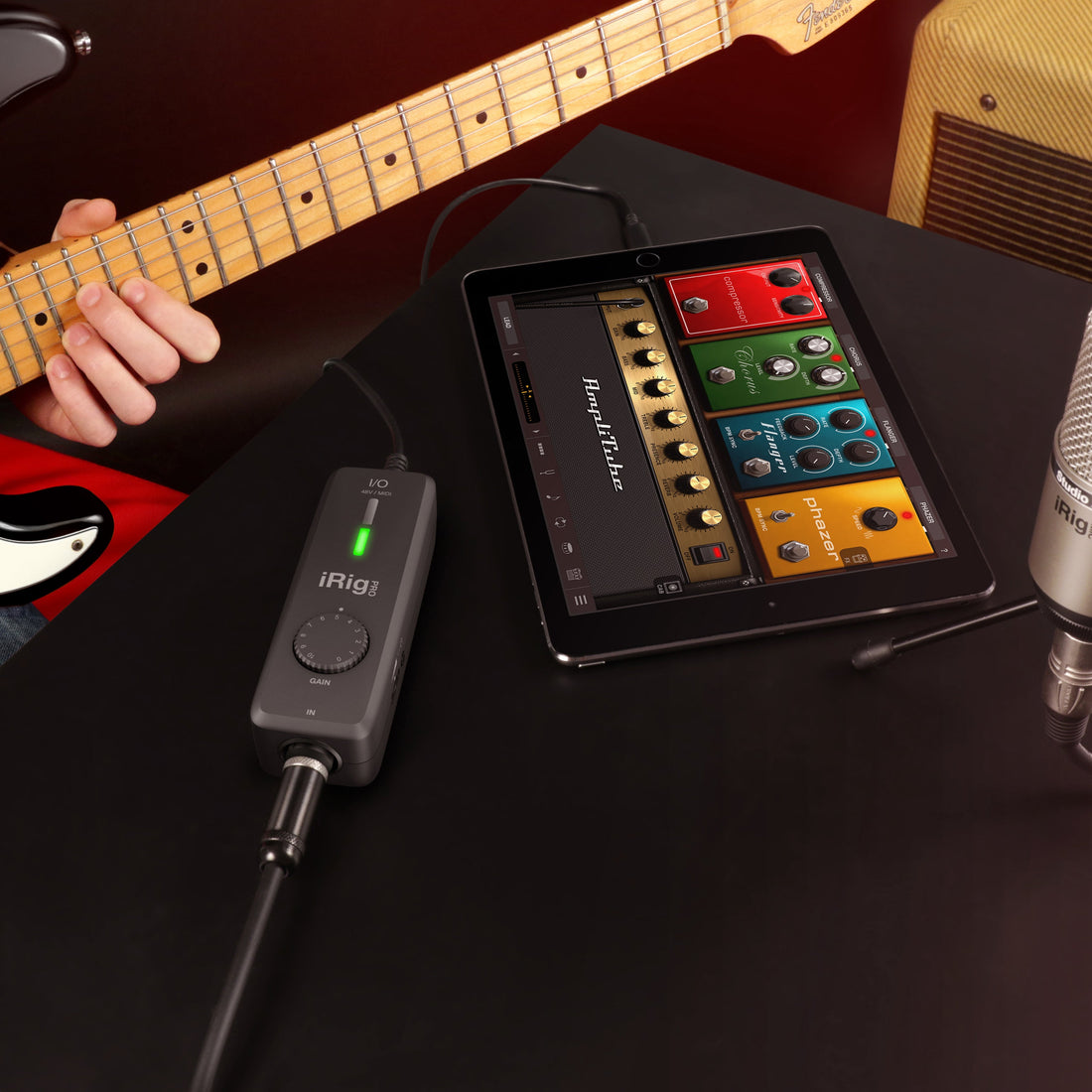

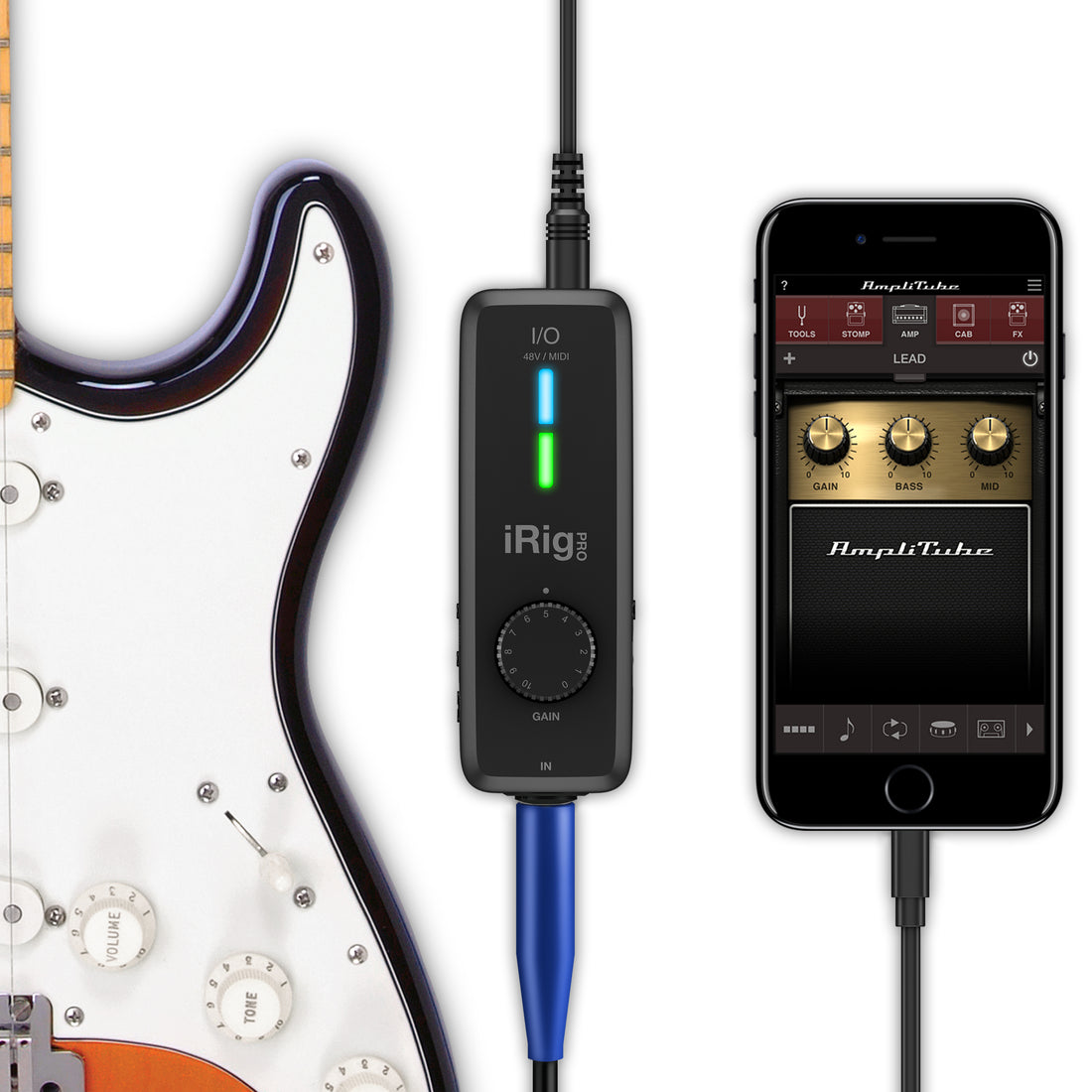

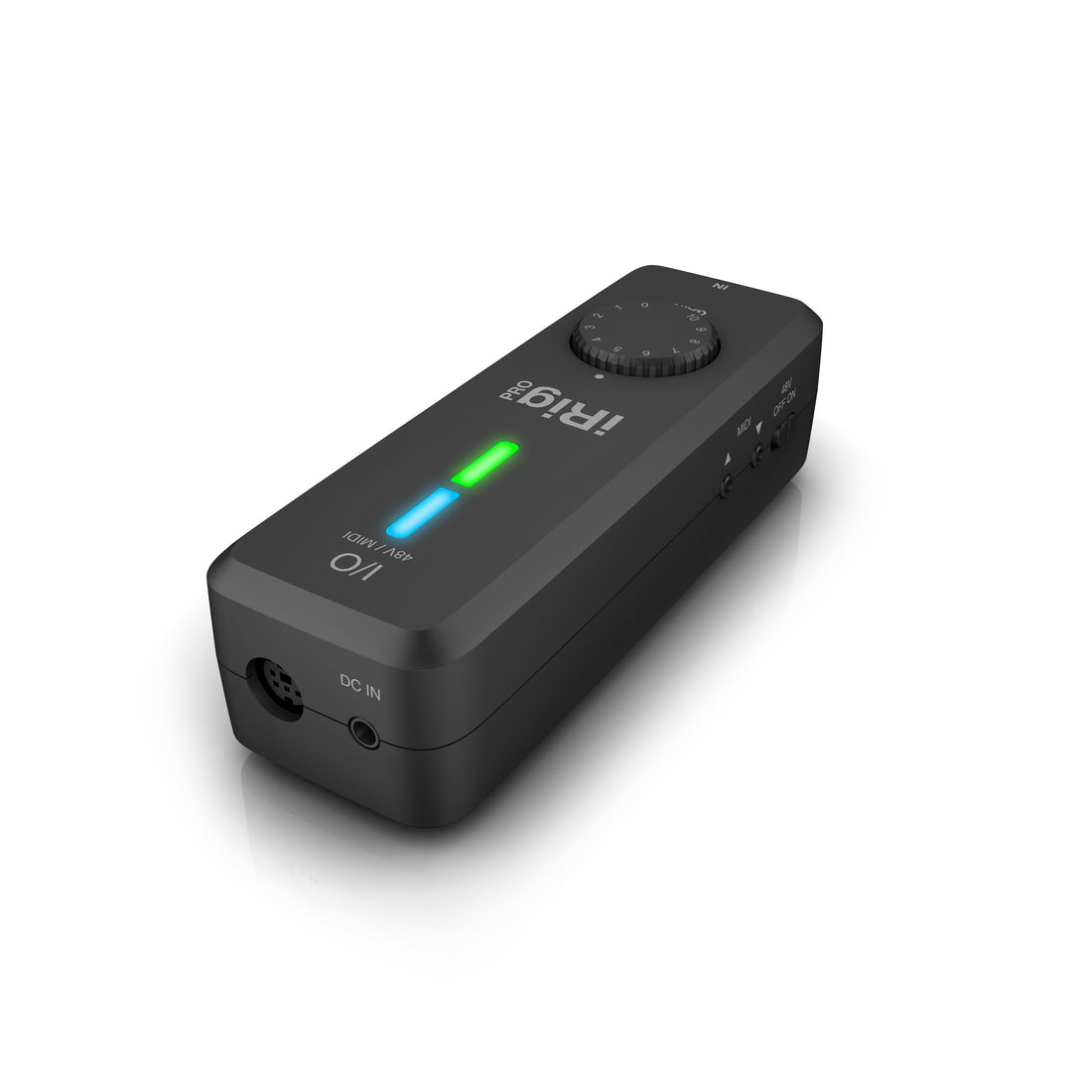

iRig Pro I/O is a compact 24-bit/96 kHz audio and MIDI interface for recording microphones, instruments and MIDI gear with iPhone, iPad, Mac and PC.

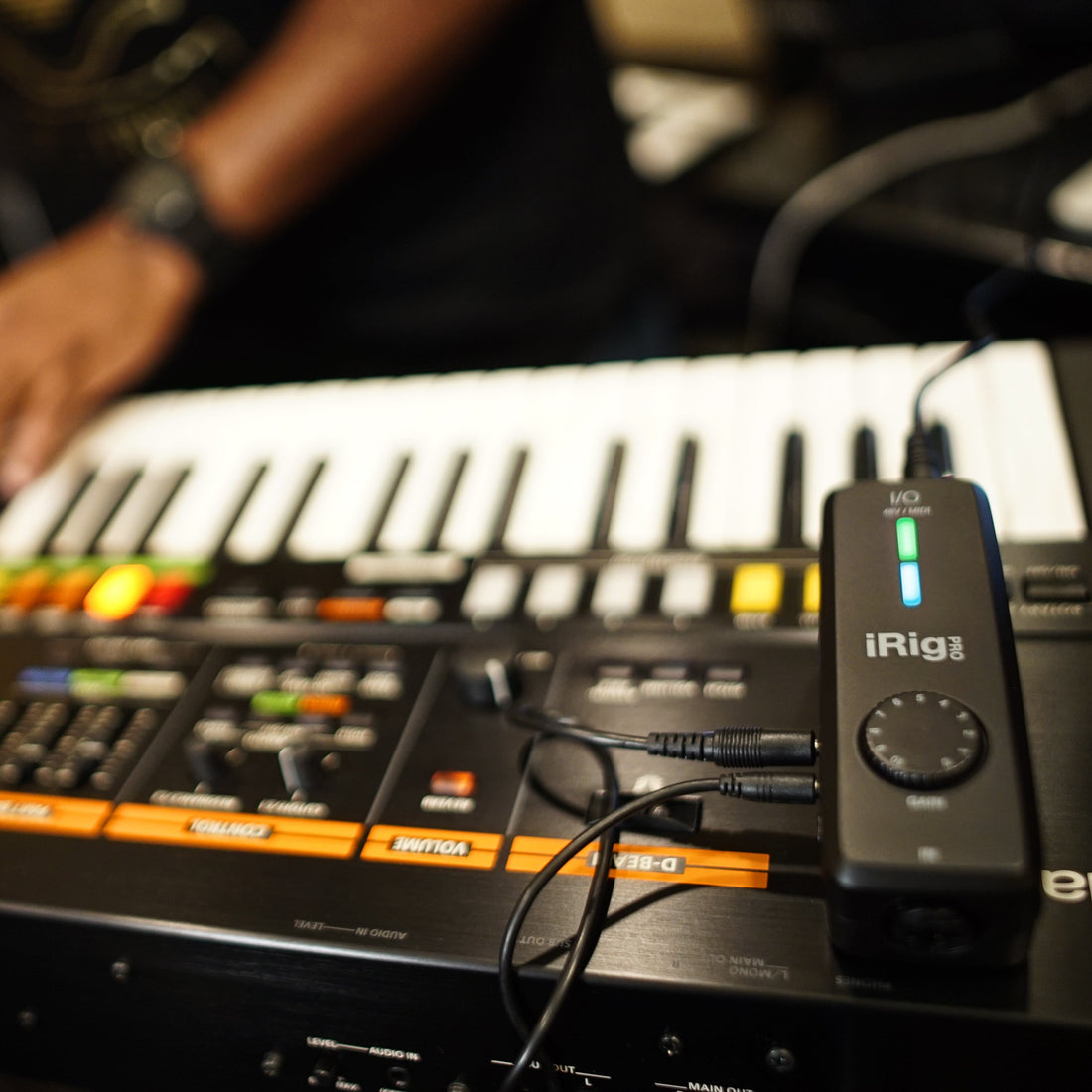

Its combo XLR/TRS input handles microphones and instruments, with +48 V phantom power for condenser mics, while MIDI In/Out lets you connect keyboards, controllers and other MIDI gear. A headphone output provides convenient monitoring, and flexible battery, USB or optional DC power makes iRig Pro I/O a portable recording solution wherever you work.
Get started
Here's how to register your product and download your Free Bonus Content and manuals.
-
Create your IK Multimedia account
If you're not an IK registered user yet, create your IK Multimedia account. Already have one? Skip this step.
-
Register and authorize your product
Download and install the IK Multimedia Product Manager, the standalone app for registration, downloads, installation, authorization, updates, user manuals and Free Bonus Content. Already installed? Skip the download.
Run the Product Manager and click Register to register and authorize your product. Once it's registered, the Product Manager lists all your Free Bonus Content, ready to download and authorize.
Specs
iRig Pro I/O Specifications
Microphone Input
Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: 3.2 kOhms
Gain Range: 40 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS
Instrument Input
Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS
Stereo Headphone Output
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Control numbered thumbwheel
Headphone Level Power 100mW into 50 Ohms
MIDI Input/Output
Connector: 2x2.5mm TS Jack
Other Input/Output
DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN
Common
Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power: USB bus powered when used with a computer; battery powered (2xAA included) when used with an iOS device; DC power supply (not included, iRig PSU 3A sold separately)
Package includes
iRig Pro I/O universal Audio-MIDI interface
Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
USB-A to Mini-DIN connection cable (60cm/23.62")
USB-C to Mini-DIN connection cable (60cm/23.62")
2.5mm TRS male to MIDI female adapter (10cm / 3.9")
2 x 1.5V AA Battery
Velcro strip
Dimensions
Size: 43mm/1.69" x 127mm/5" x 37mm/1.46"
Weight: ~120g/4.23oz (batteries excluded)
Compatibility
iOS Devices
Made for: iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation.
Also compatible with all newer iPhone, iPad and iPod touch models.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed.
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities. Micro-USB-OTG to Mini-DIN cable (sold separately) is required.
