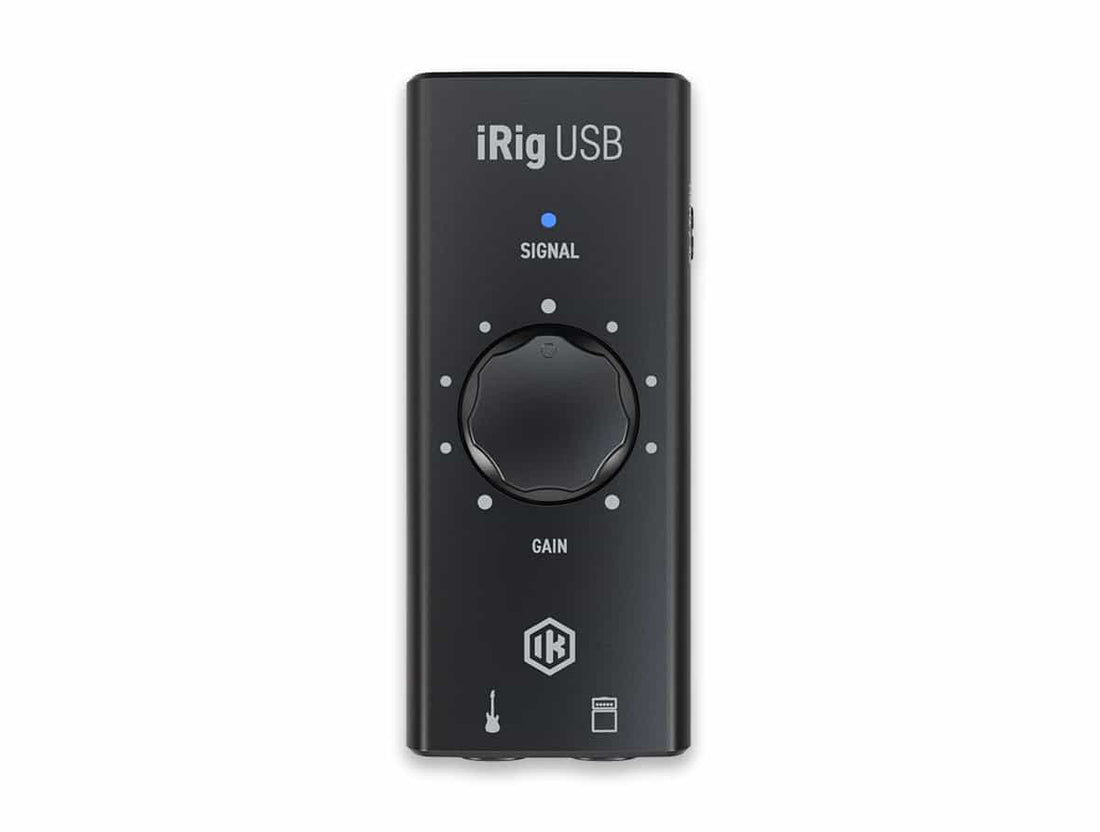

iRig USB Specifications
Common
AD and DA resolution: 24-bit
Sampling rate: 44.1 kHz and 48 kHz
Host connection: USB Type-C socket
Instrument Input
Input impedance: 500 kOhms
Maximum input level: +13.5 dBu
Frequency response: From 20 Hz to 20 kHz within 0.5 dB (48 kHz sample rate)
Dynamic range: 90 dB(A)
Amp Output
Configuration: Unbalanced
Output impedance: 3.3 kOhms
Frequency response: From 10 Hz to 20 kHz within 1 dB (48 kHz sample rate)
Dynamic range: 97 dB(A)
Headphone Output
Output impedance: 22 Ohms
Maximum output level: approx 6mW into 50 Ohms load
Frequency response: From 10 Hz to 20kHz within 1 dB (48 kHz sample rate)
Dynamic range: 94 dB(A)
Package includes
iRig USB interface
USB-C to USB-C cable (60 cm/23.62")
Dimensions
Size: 99 mm/3.9" x 42 mm/1.65" x 25 mm/0.98"
Weight: 54 g/1.9 oz.
Compatibility
Computers
Mac®: macOS 10.6 or later. One free USB port.
Windows®: Windows 10 or later. One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed.
iOS Devices
Compatible with iPhone and iPad devices with USB-C connector.
Also compatible with iPhone and iPad devices with Lightning connector using Apple's Lightning to USB 3 Camera Adapter.
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
