Perfect studio sound — from the bottom up.

Calibrated bass extension for any monitoring system, any monitor brand.

$599.99($731.99 incl. VAT)
Deep, accurate bass extension down to 25 Hz
ARC X room correction — calibrates any connected monitors
Automatic subwoofer setup and time-alignment
Smallest studio subwoofer footprint on the market
Works with any monitor brand via XLR, RCA, USB or Bluetooth
6.5" aluminum driver + dual passive radiators
200W peak power amplification

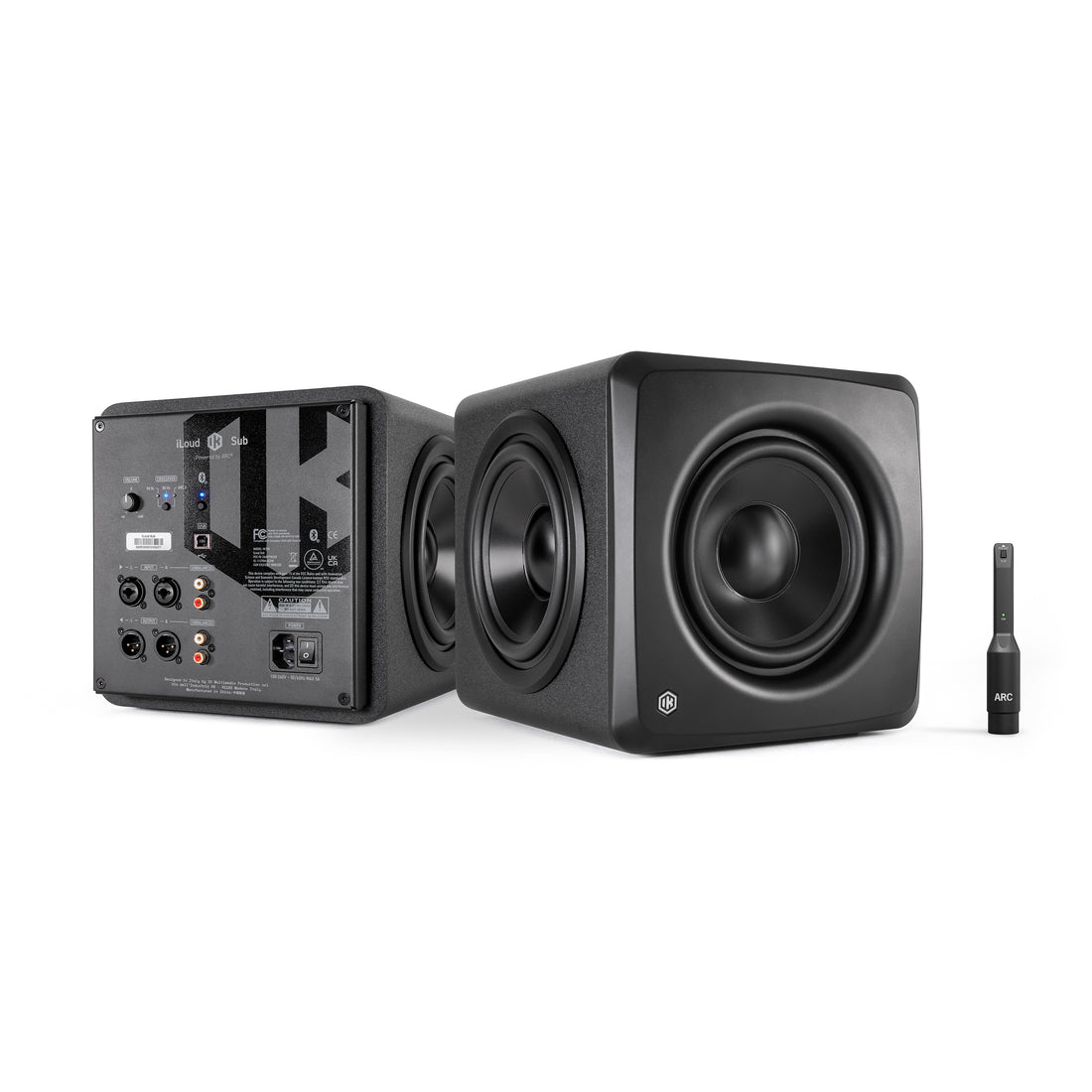

Includes ARC measurement microphone
Immersive-ready for multichannel workflows
iLoud Sub Specifications
Type: Ultra compact studio quality subwoofer with automatic setup, alignment, and room calibration
Driver: 6.5" high performance aluminum woofer
Acoustic design: DSP tuned with 2 x 6.5" aluminum passive radiators
Amplifier type: High efficiency Class D
Total power: 160 W RMS power, 200 W peak
Frequency response: 25 150 Hz @ 6 dB
Crossover Type: Digital
Crossover frequency range: 50 Hz 150 Hz
Max SPL at 40 Hz: 106 dB peak
Analog input sensitivity: 4 dBu signal generates 90 dB SPL @1 m
Maximum analog output level: 13 dBu = 0 dBFS

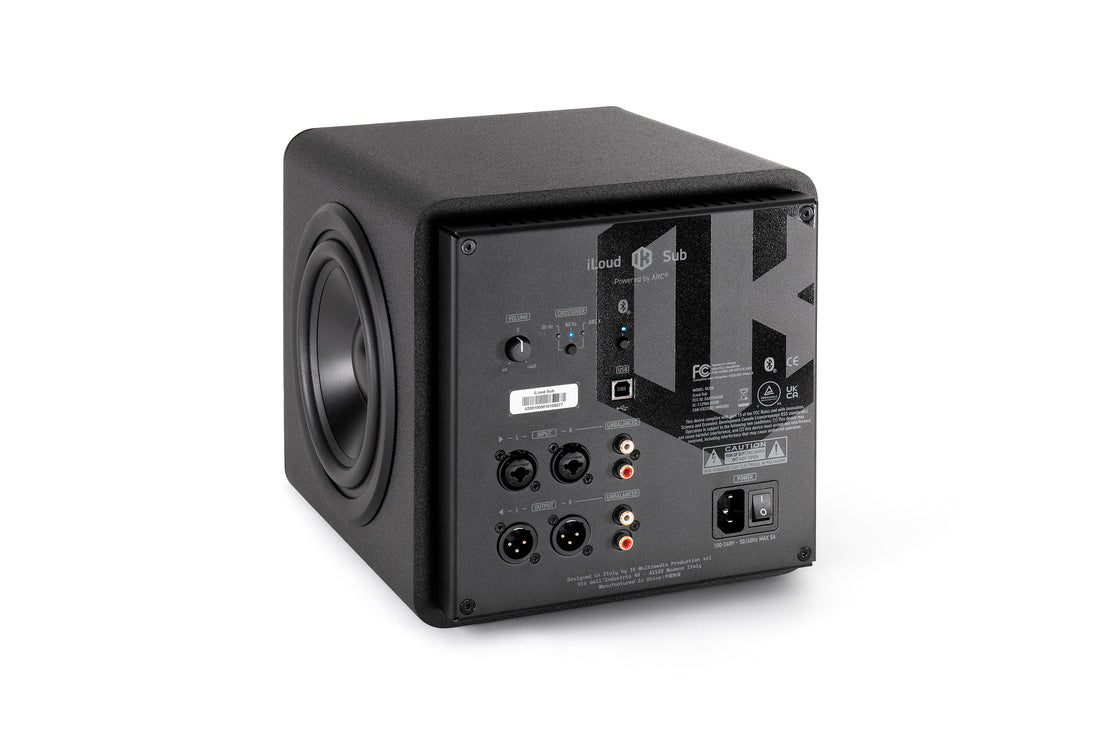

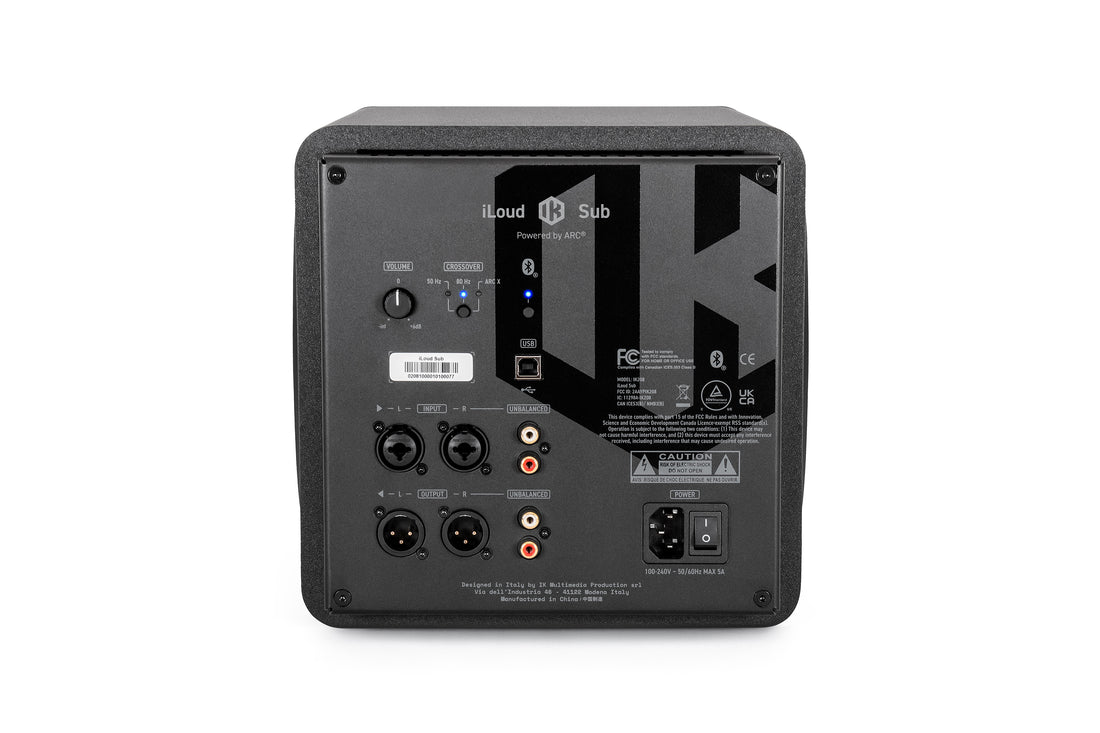

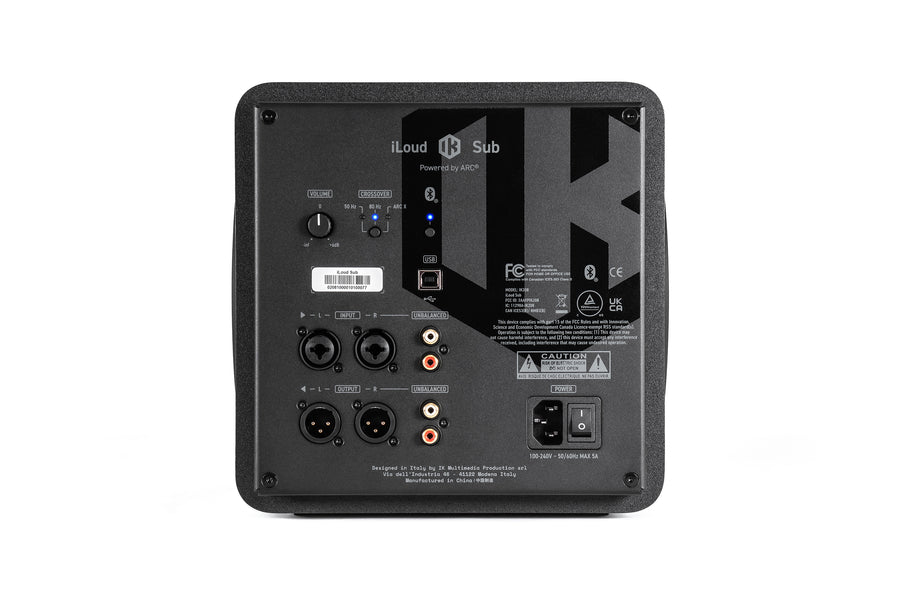

Connectors: 2 x XLR and 2 x RCA analog inputs, 2 x XLR and 2 x RCA analog outputs, 1 x USB, 1 x power socket
Supported Bluetooth audio codec: SBC, AAC
Supported USB audio input sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Full DSP control
Calibration: Built in ARC room correction for both subwoofer and satellite speakers
Output Latency: 1.42 ms
Control software: ARC X for macOS and Windows
Power requirement: 100 to 240 V AC, auto ranging, 50 or 60 Hz, 5 A max
Operating temperature (non condensing): from 0 to 45 °C
Dimensions
Dimension (H x W x D): 24.4 cm/9.61" x 25 cm/9.84" x 28.3 cm/11.14"
Weight: 7.1 kg/15.6 lbs.
Package includes
1x iLoud Sub
1x Power cord
1x USB cable
ARC Microphone with clamp
System Requirements
ARC X
Mac® (64 bits)
Minimal: Apple M1 or Intel® Core i5 Processor, 4 GB of RAM, macOS® 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors).
Supported Plug in formats: Audio Units, VST 3, AAX.
Works with any audio interface with a phantom powered XLR microphone input and a pair of outputs for monitoring.
44.1 kHz or 48 kHz sampling rate is required for the measurement process.
Windows® (64 bits)
Minimal: Intel® Core i5 Processor or equivalent, 4 GB of RAM, Windows 10 (64 bit) or newer.
Supported Plug in formats: VST 3, AAX.
Works with any audio interface with ASIO drivers, a phantom powered XLR microphone input and a pair of outputs for monitoring.
44.1kHz or 48kHz sampling rate is required for the measurement process.
Requires an OpenGL 2 compatible graphics adapter.
See manuals here
iLoud Sub $599.99

Accurate low end changes everything.

Without accurate bass monitoring, low-frequency decisions are guesswork — and guesswork doesn't translate. iLoud Sub extends the low-frequency range of any monitoring system with tight, calibrated bass reproduction built for desktop and nearfield environments. Any monitoring system. Any monitor brand.

Overview

The missing piece of your monitoring system.

Accurate bass. Not just more of It.

iLoud Sub delivers tight, musical low-frequency reproduction that integrates seamlessly with your existing monitors — extending your range without the bloat or overhang that compromises translation. What you gain is clarity across the full spectrum, not just volume at the bottom.

Works with any monitor. Any brand.

iLoud Sub is not an iLoud-only accessory. Flexible analog and digital connection options provide integration with any monitoring system — so whatever monitors you use, iLoud Sub is built to complete them.

Calibrated from the bottom up

iLoud Sub includes ARC X — a calibration system designed specifically for subwoofer integration. It measures your room's low-frequency response, optimizes output for your listening position, and aligns the sub precisely with your monitors. One calibrated system. Full-range accuracy.

From stereo to full-range in one step

A stereo pair tells most of the story. iLoud Sub tells the rest — extending low-frequency awareness and giving you the confidence to make bass decisions that hold up everywhere your work is heard.

Hear the bottom of your mix

Most nearfield monitors roll off before the lowest frequencies become audible. That missing information shows up as translation problems. iLoud Sub fills that gap with accurate, calibrated bass reproduction — so the full frequency range of your mix is available for critical decisions.

Your monitors. Your sub.

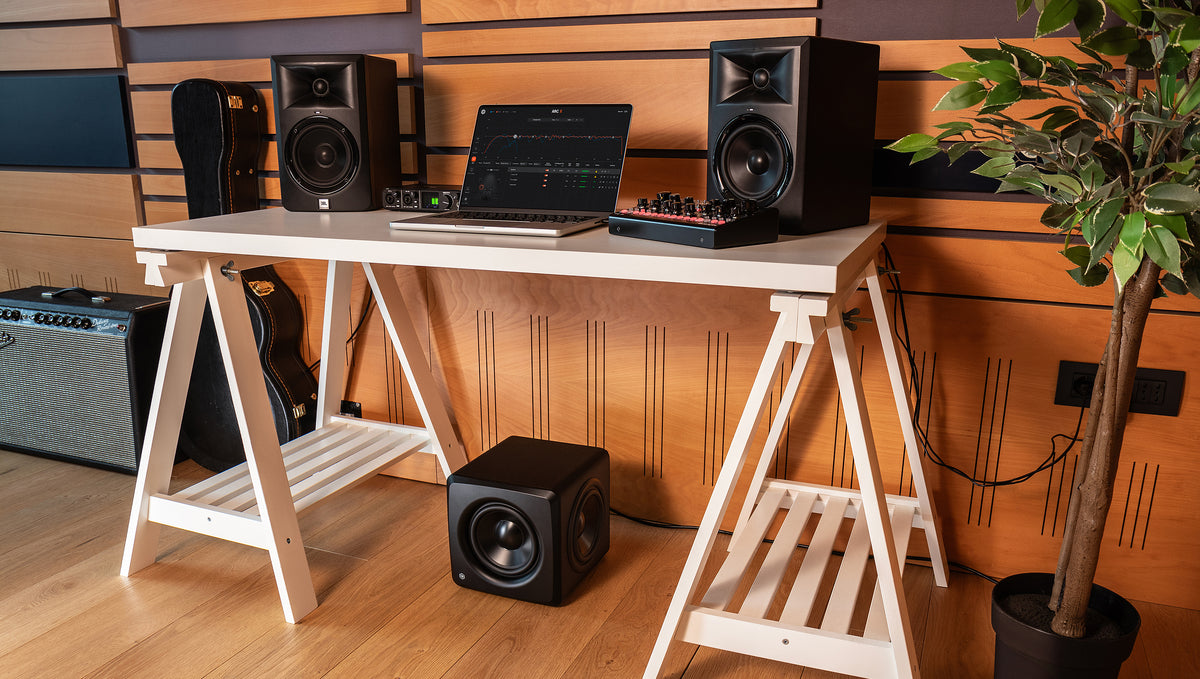

iLoud Sub integrates with any monitoring system via flexible analog and digital connection options. ARC X calibration ensures the sub and your monitors work as a unified, time-aligned system — regardless of brand, model, or configuration.

Calibration built for the low end

Bass calibration requires more than broadband room correction. ARC X handles subwoofer-specific time-alignment, crossover management, and low-frequency room analysis — so the full-range result is as accurate as the sum of its parts.

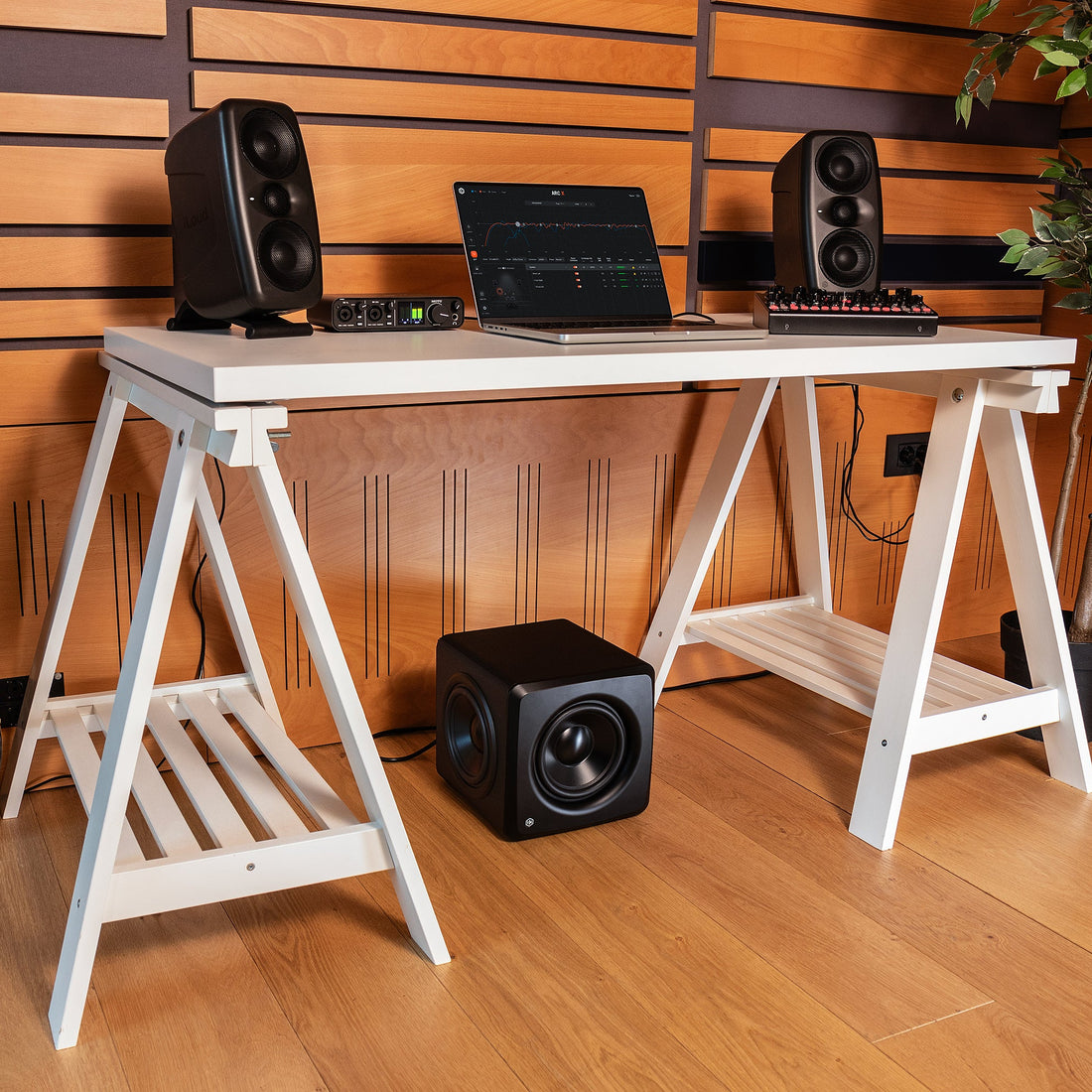

Full-range performance. Minimal footprint.

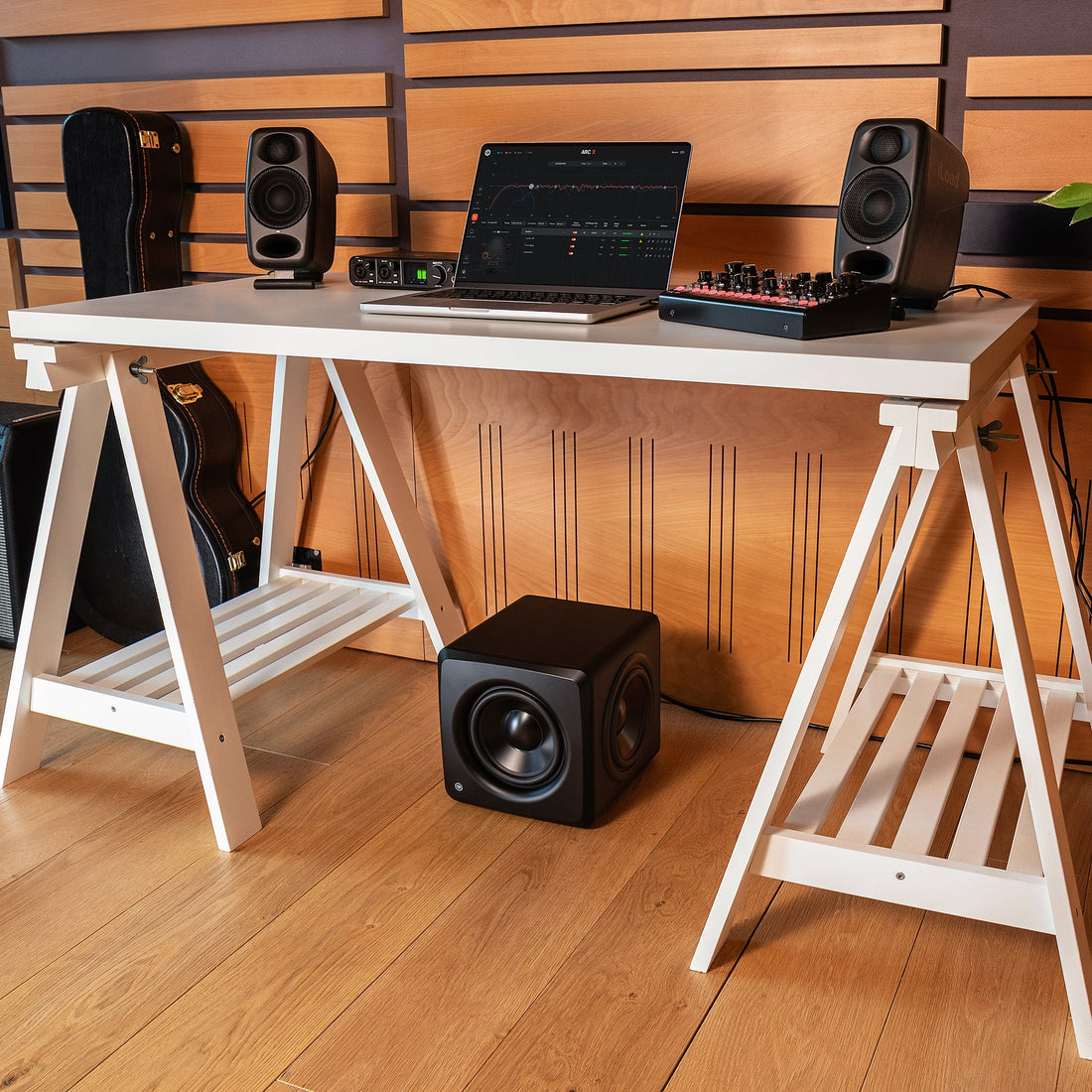

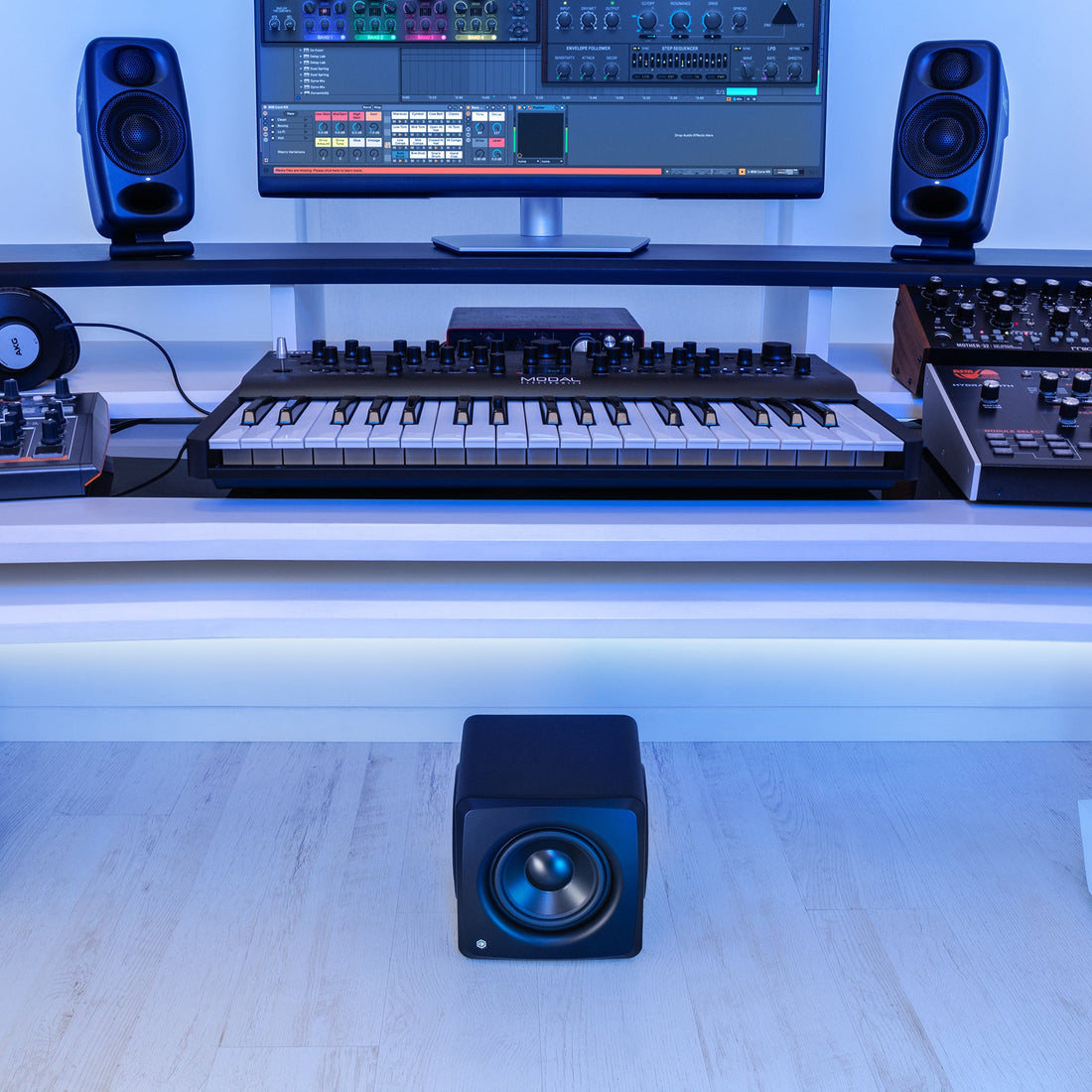

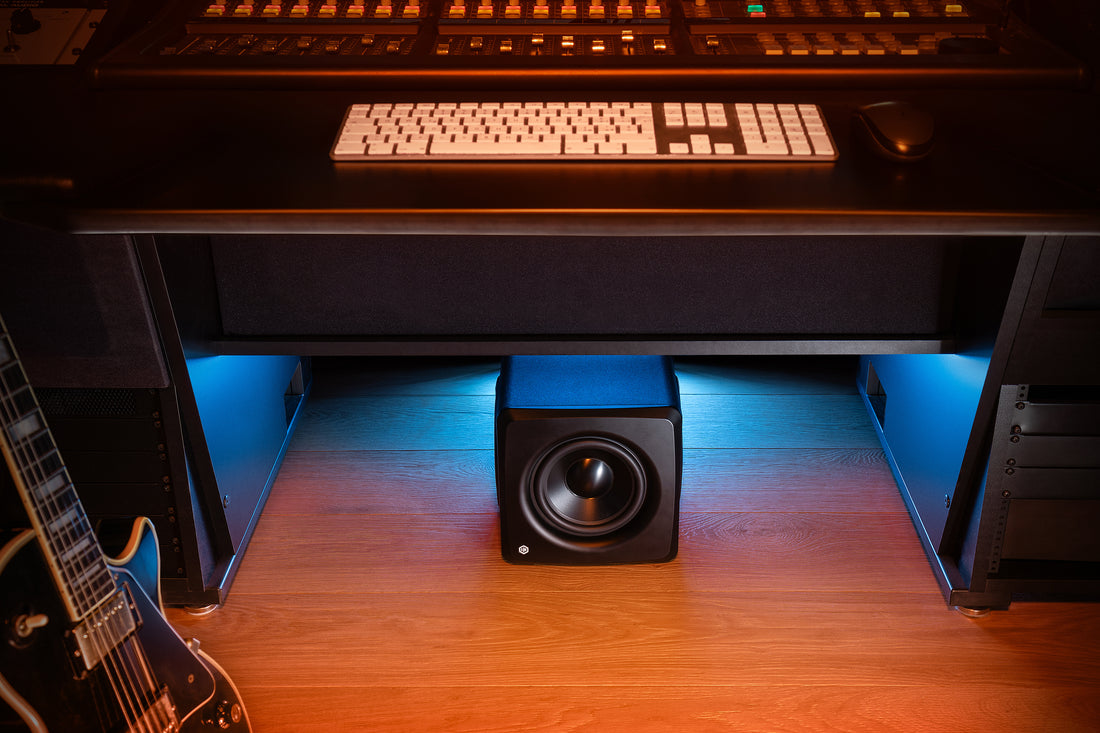

iLoud Sub delivers professional low-frequency extension in an exceptionally compact form factor — designed for the desktop and nearfield environments where most modern production happens.

TECH

IN DETAIL

IN DETAIL

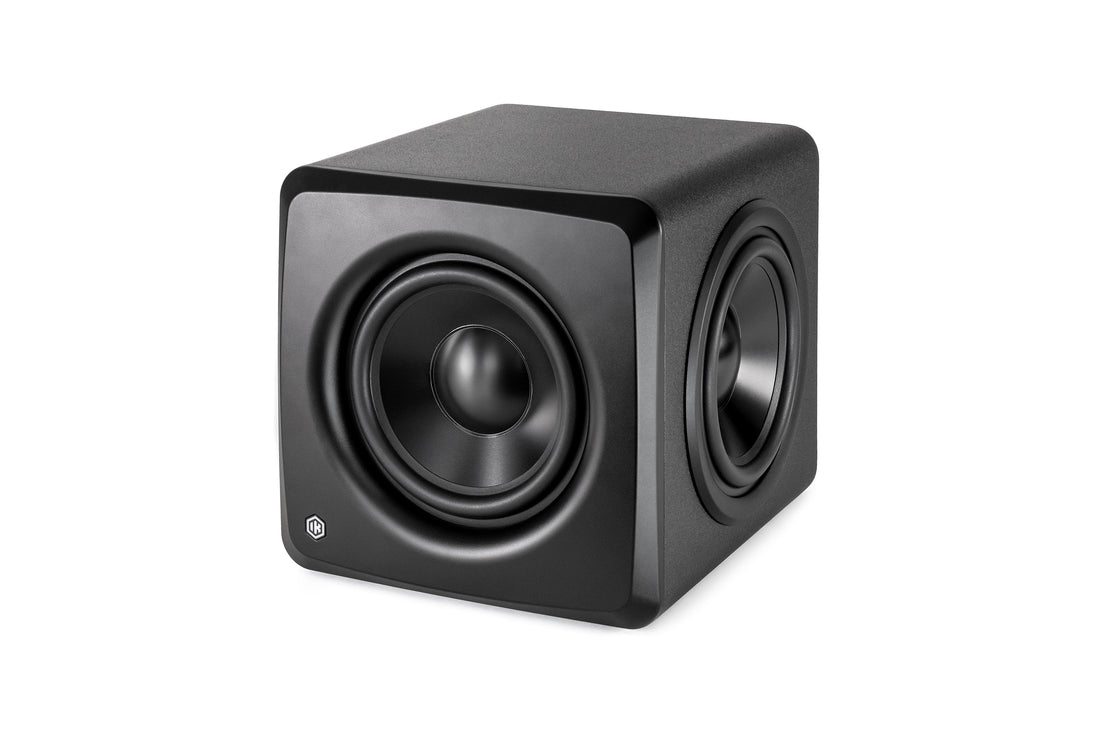

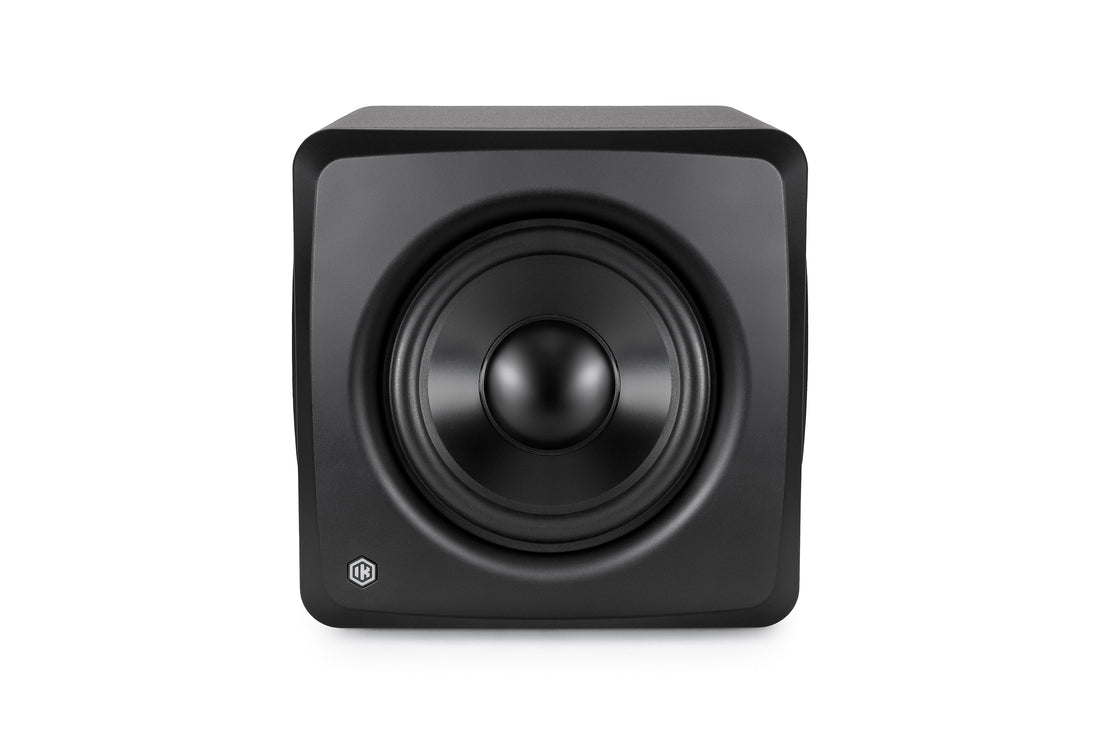

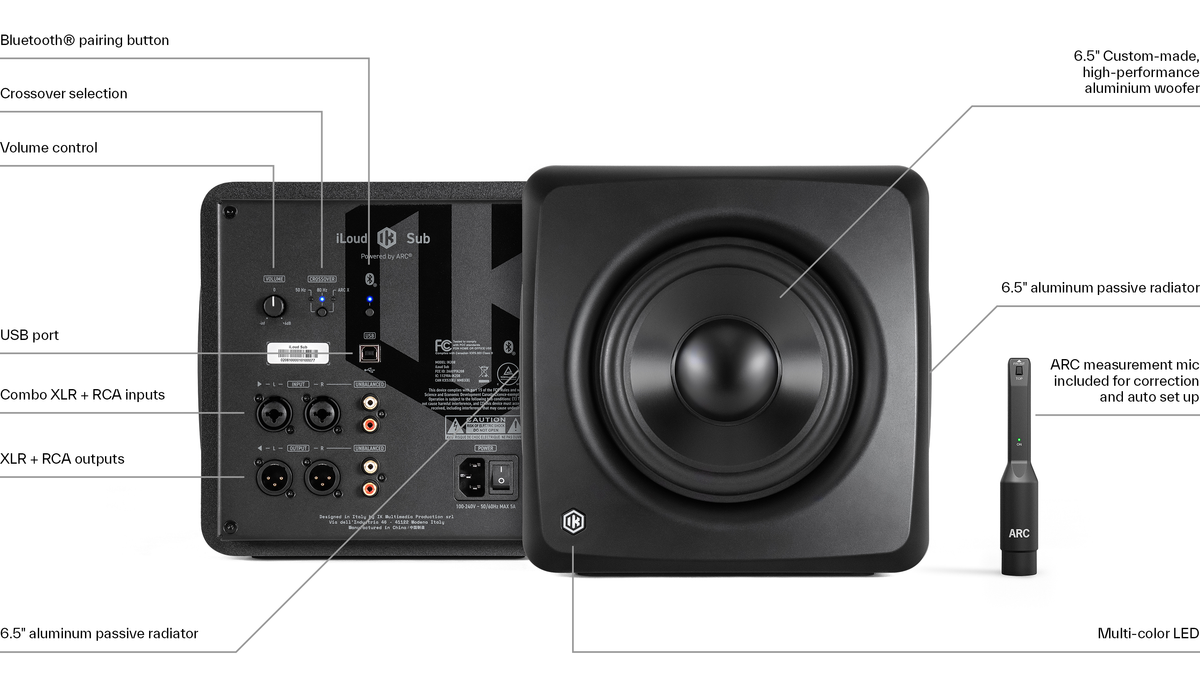

iLoud Sub's 6.5" aluminum driver and dual passive radiator design are precision-tuned to deliver tight, accurate bass reproduction across the full low-frequency range — in a cabinet compact enough for any desktop or nearfield environment.
IN DETAIL
Specs
iLoud Sub Specifications
Type: Ultra compact studio quality subwoofer with automatic setup, alignment, and room calibration
Driver: 6.5" high performance aluminum woofer
Acoustic design: DSP tuned with 2 x 6.5" aluminum passive radiators
Amplifier type: High efficiency Class D
Total power: 160 W RMS power, 200 W peak
Frequency response: 25 150 Hz @ 6 dB
Crossover Type: Digital
Crossover frequency range: 50 Hz 150 Hz
Max SPL at 40 Hz: 106 dB peak
Analog input sensitivity: 4 dBu signal generates 90 dB SPL @1 m
Maximum analog output level: 13 dBu = 0 dBFS
Connectors: 2 x XLR and 2 x RCA analog inputs, 2 x XLR and 2 x RCA analog outputs, 1 x USB, 1 x power socket
Supported Bluetooth audio codec: SBC, AAC
Supported USB audio input sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Full DSP control
Calibration: Built in ARC room correction for both subwoofer and satellite speakers
Output Latency: 1.42 ms
Control software: ARC X for macOS and Windows
Power requirement: 100 to 240 V AC, auto ranging, 50 or 60 Hz, 5 A max
Operating temperature (non condensing): from 0 to 45 °C
Dimensions
Dimension (H x W x D): 24.4 cm/9.61" x 25 cm/9.84" x 28.3 cm/11.14"
Weight: 7.1 kg/15.6 lbs.
Package includes
1x iLoud Sub
1x Power cord
1x USB cable
ARC Microphone with clamp
System Requirements
ARC X
Mac® (64 bits)
Minimal: Apple M1 or Intel® Core i5 Processor, 4 GB of RAM, macOS® 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors).
Supported Plug in formats: Audio Units, VST 3, AAX.
Works with any audio interface with a phantom powered XLR microphone input and a pair of outputs for monitoring.
44.1 kHz or 48 kHz sampling rate is required for the measurement process.
Windows® (64 bits)
Minimal: Intel® Core i5 Processor or equivalent, 4 GB of RAM, Windows 10 (64 bit) or newer.
Supported Plug in formats: VST 3, AAX.
Works with any audio interface with ASIO drivers, a phantom powered XLR microphone input and a pair of outputs for monitoring.
44.1kHz or 48kHz sampling rate is required for the measurement process.
Requires an OpenGL 2 compatible graphics adapter.

Confidence In the low end

Kicks, bass lines, and low-end energy come into focus. No more guesswork, no more endless revisions — just clarity, precision, and mixes that move with power and control.

Effortless studio integration

The smallest studio subwoofer footprint on the market. Connect, run ARC X, and setup is complete. iLoud Sub offers the easiest way to achieve a truly professional monitoring experience.

Better mixes, everywhere

When your monitoring system reveals the full spectrum accurately, your mixes translate flawlessly from cars to theaters. Balanced, reliable sound from bottom to top.

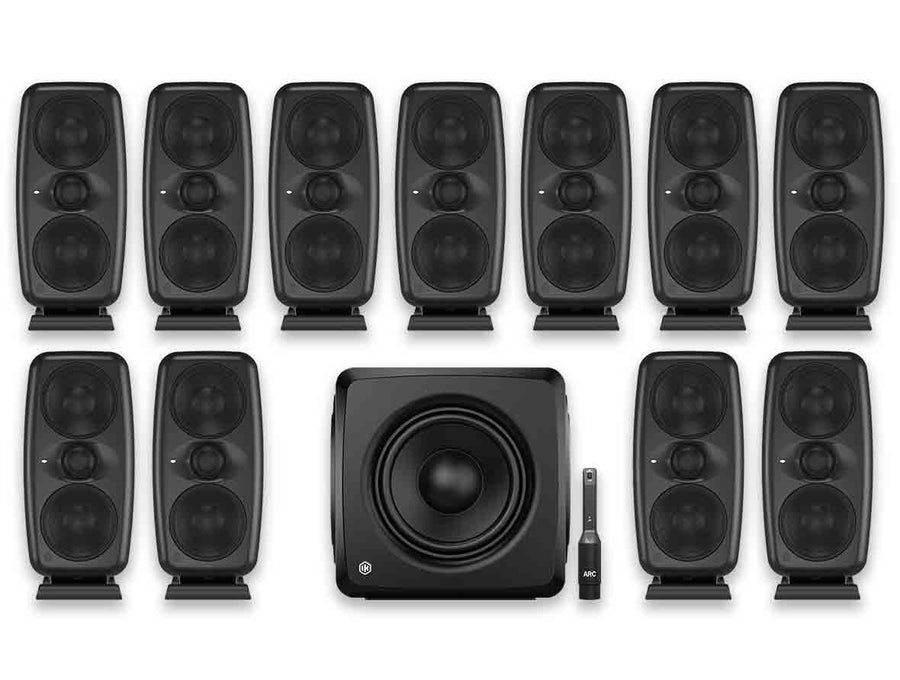

Ready for immersive

Immersive production is increasingly important across music, film, gaming, and broadcast. iLoud Sub integrates naturally into multichannel workflows and serves as a foundation for larger systems calibrated with ARC X Immersive.
SOFTWARE

Free included app/software

iLoud Sub comes with the following free bonus content

How to get the free bonus content.

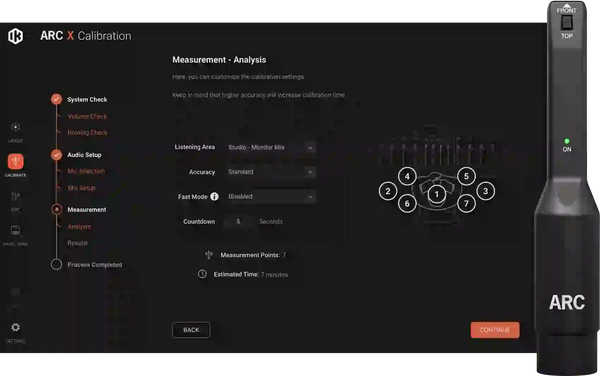

ARC X
ARC X
Advanced Room Correction plug-in.
More info
VIDEOS

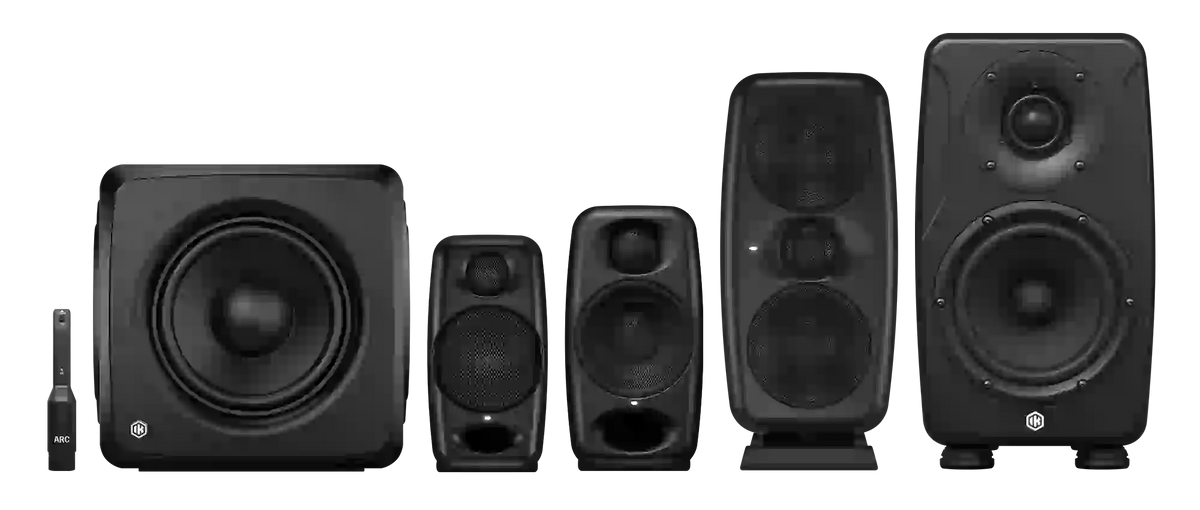

iLoud Sub with monitors

iLoud Sub — Official Trailer

BLOG
SEE ALL
RELATED PRODUCTS

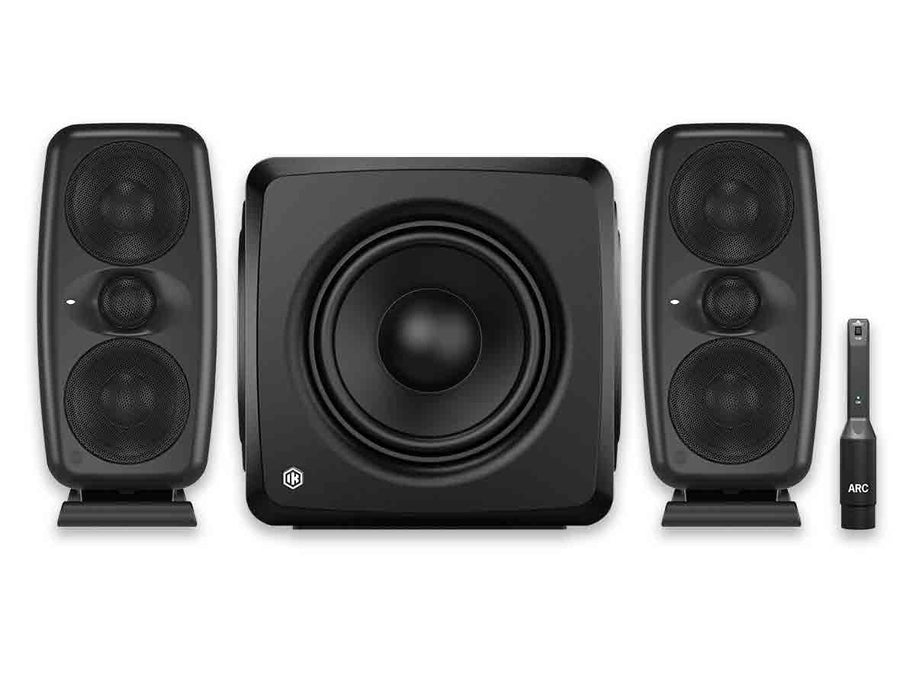

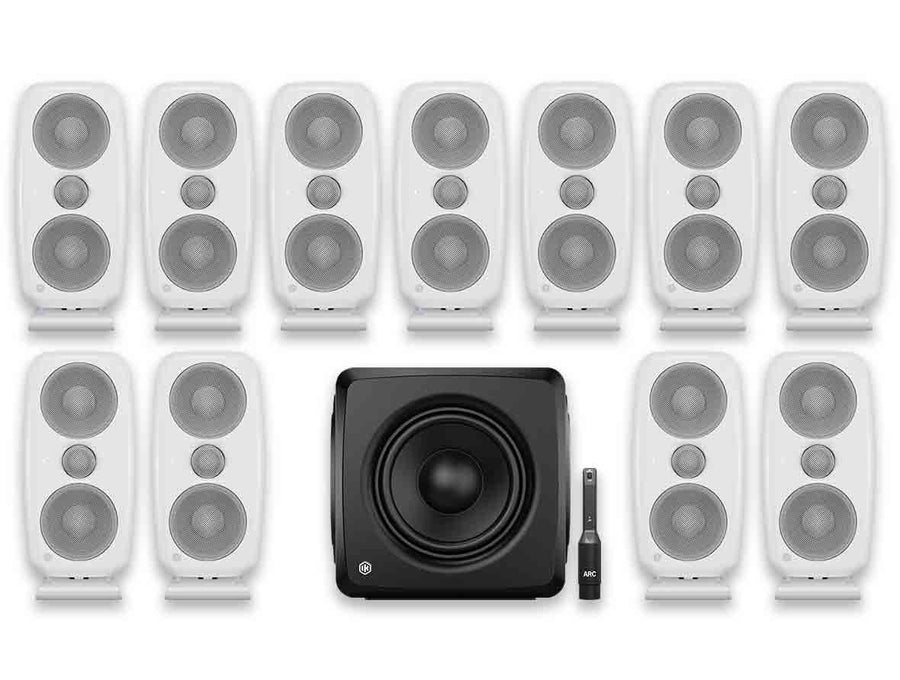

Build your complete monitoring system.

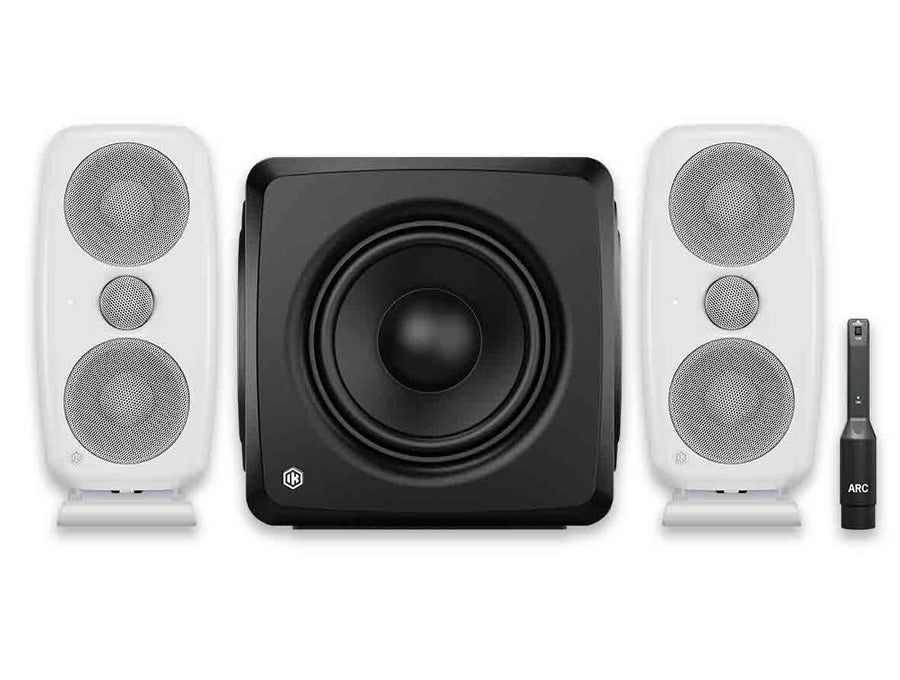

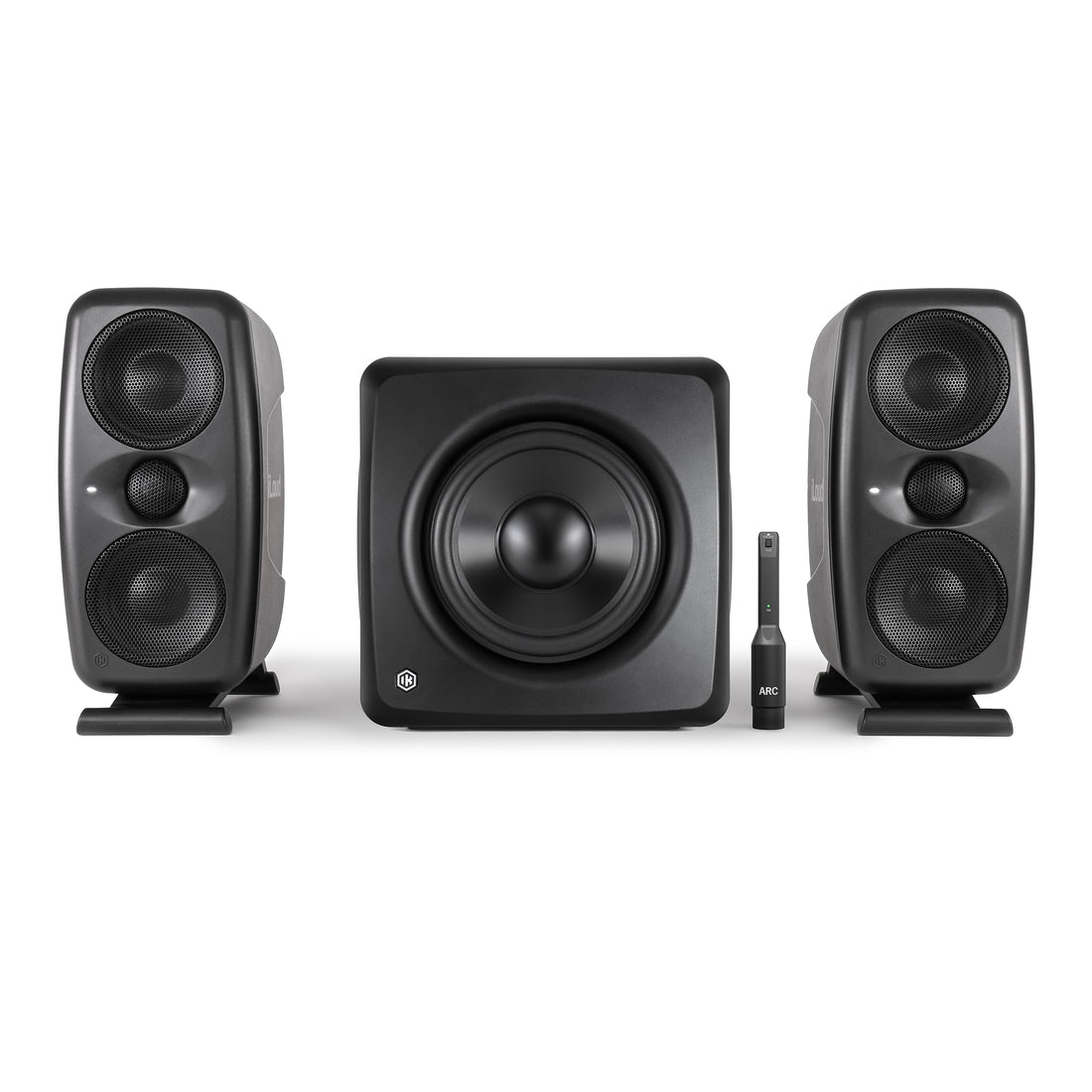

Pair iLoud Sub with any iLoud monitor for calibrated, full-range monitoring.
