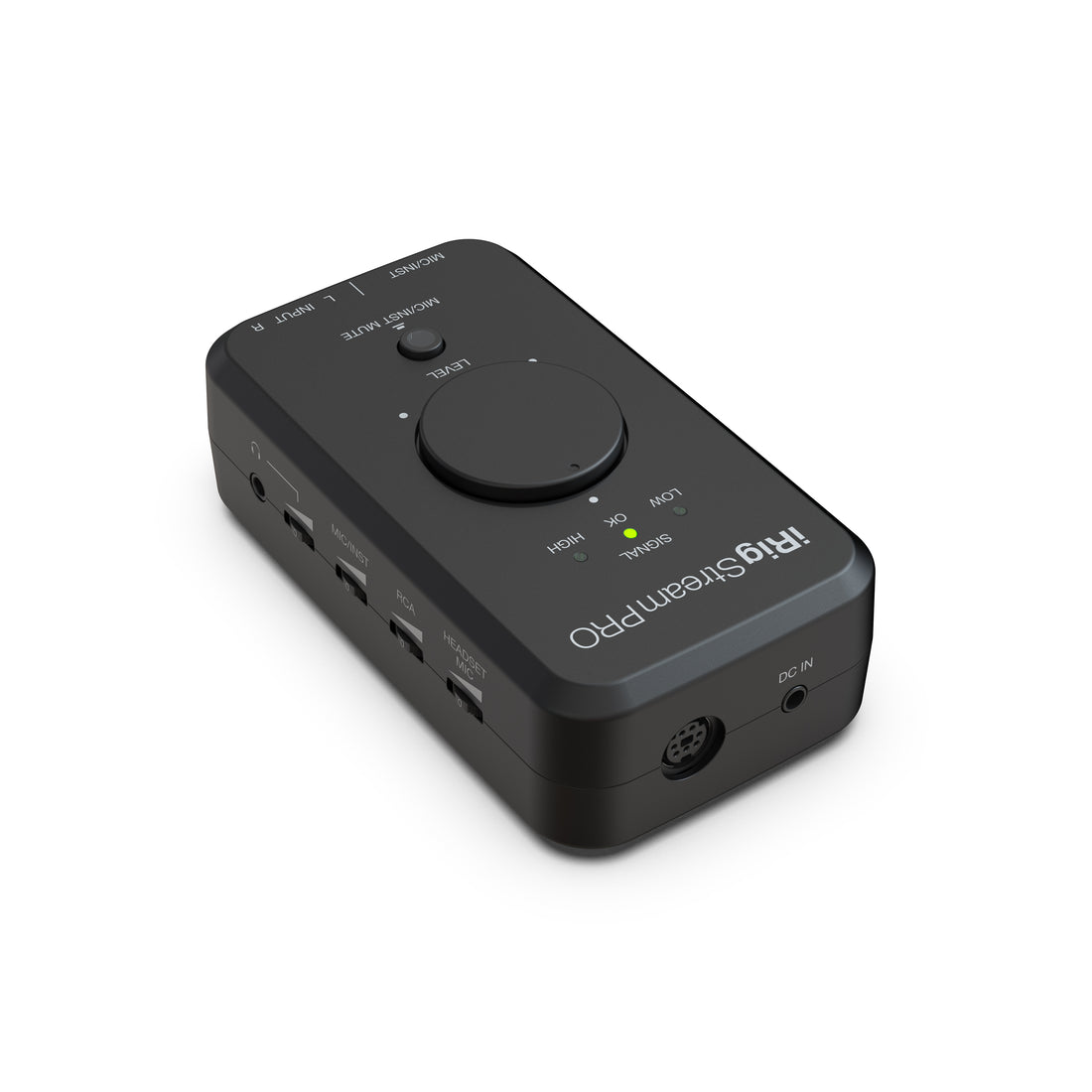

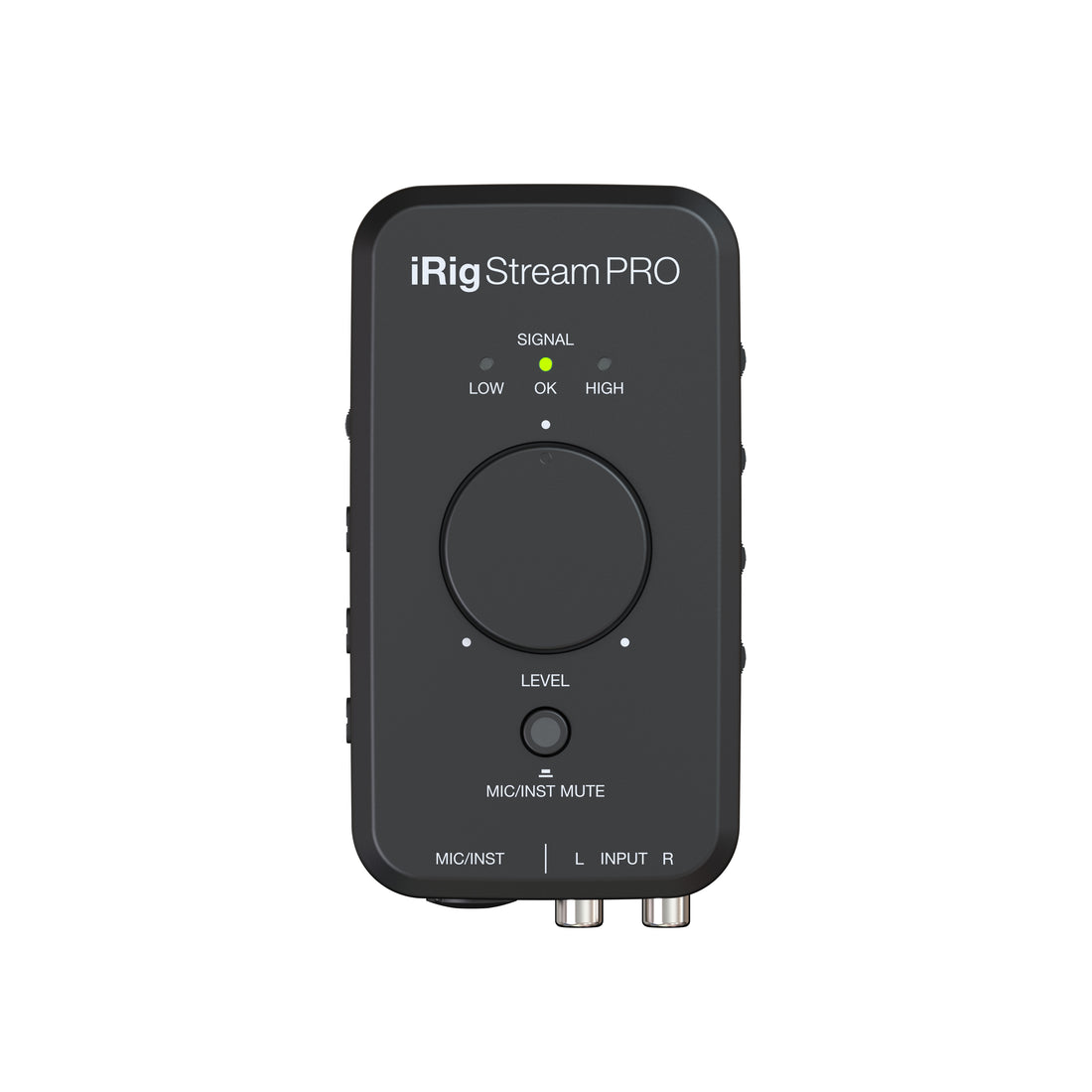

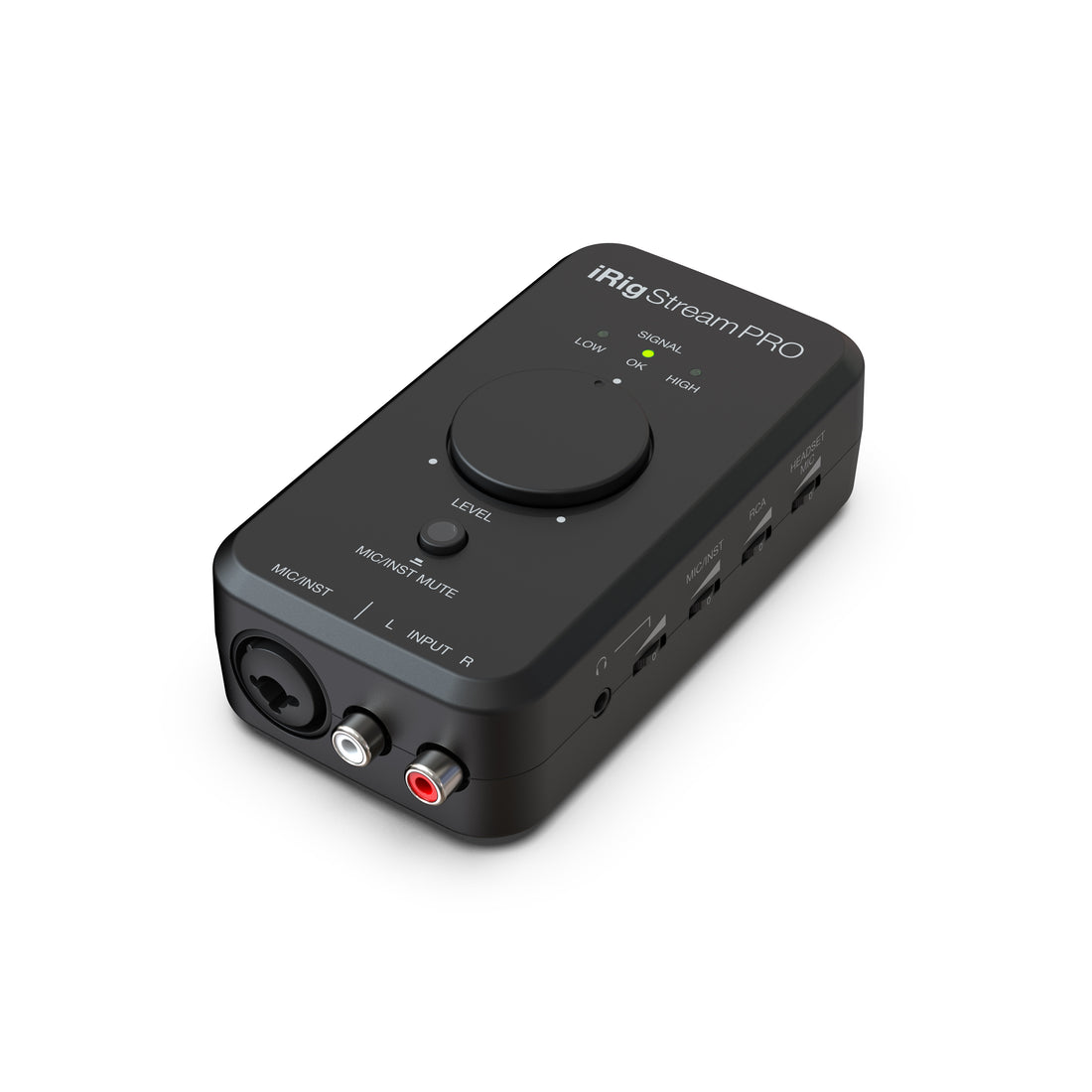

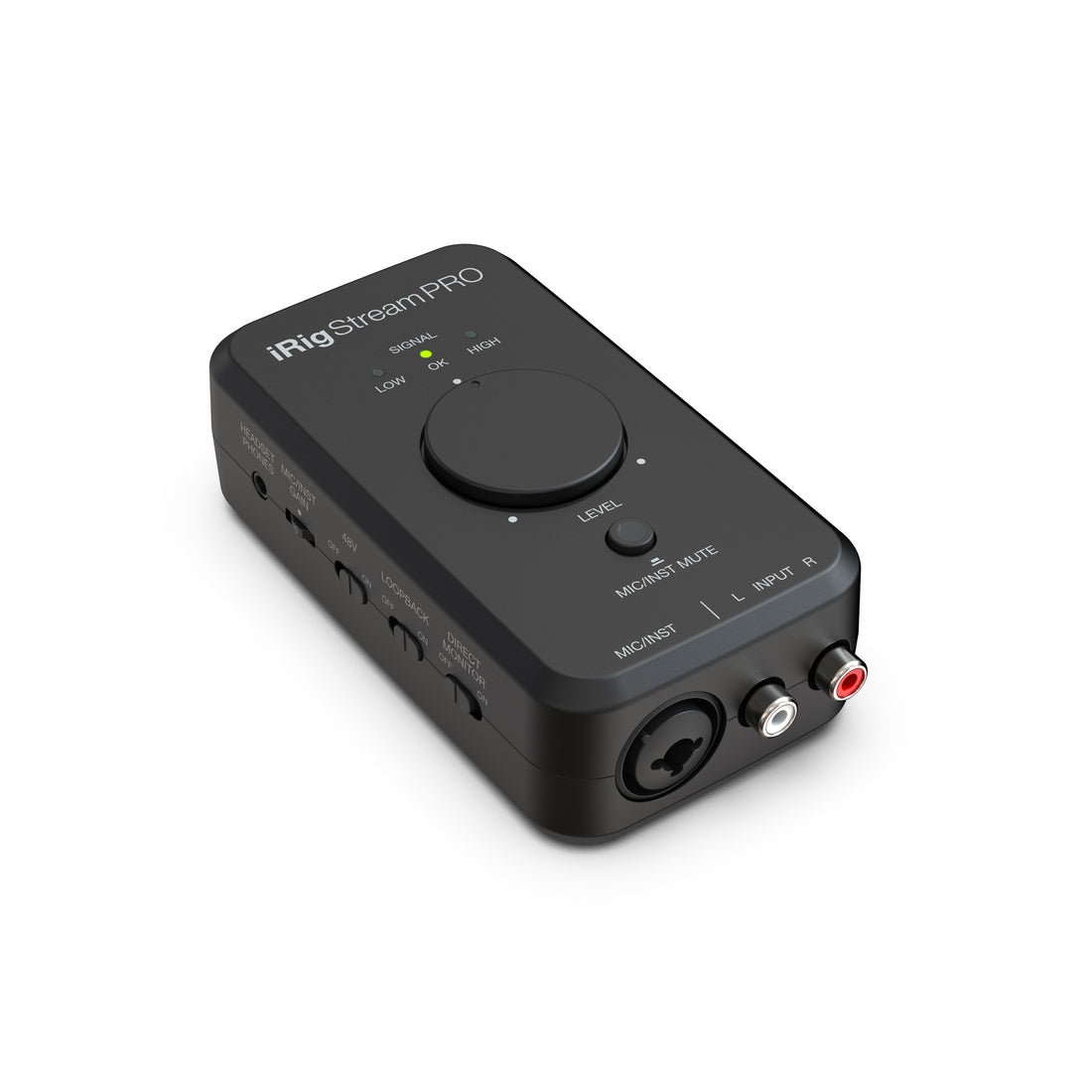

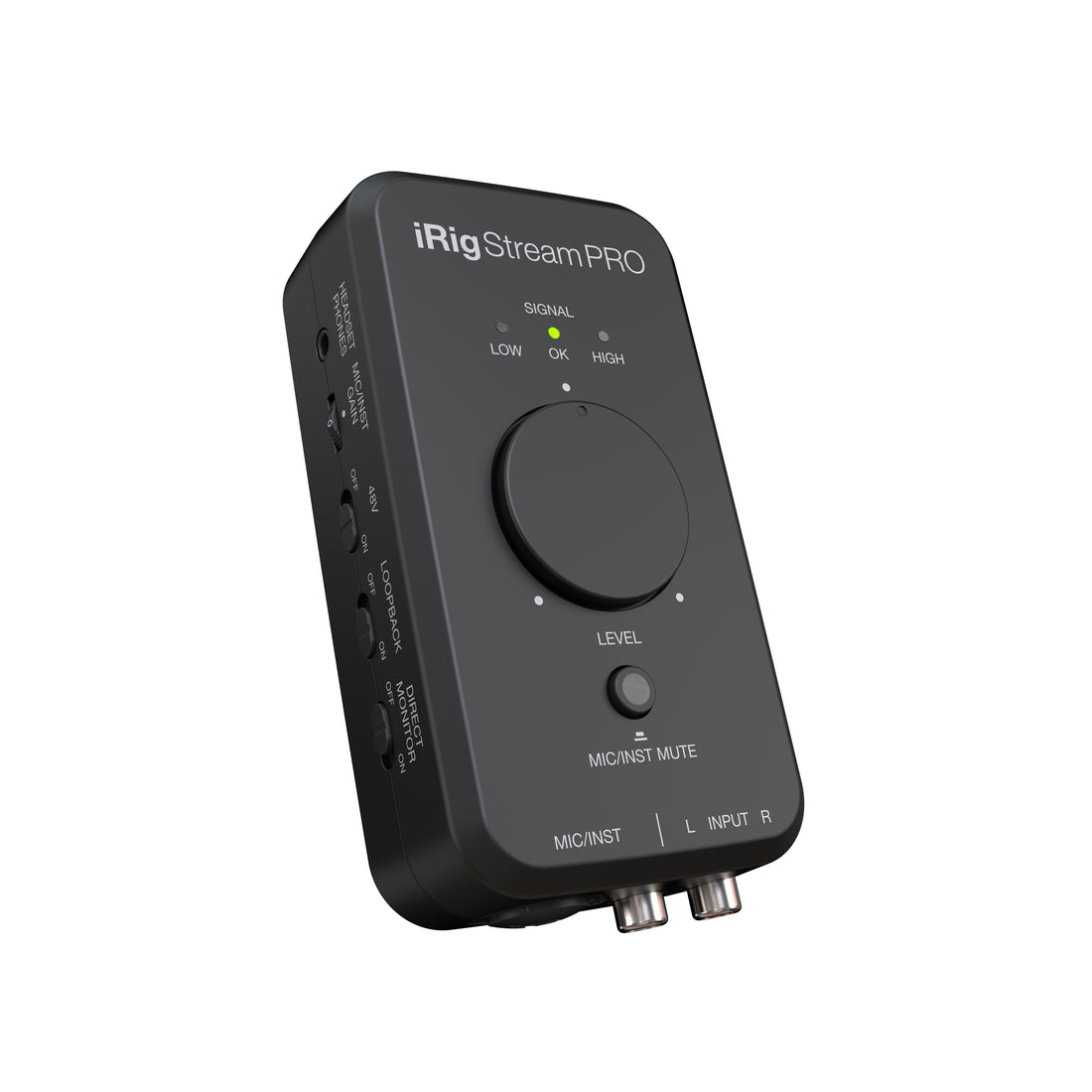

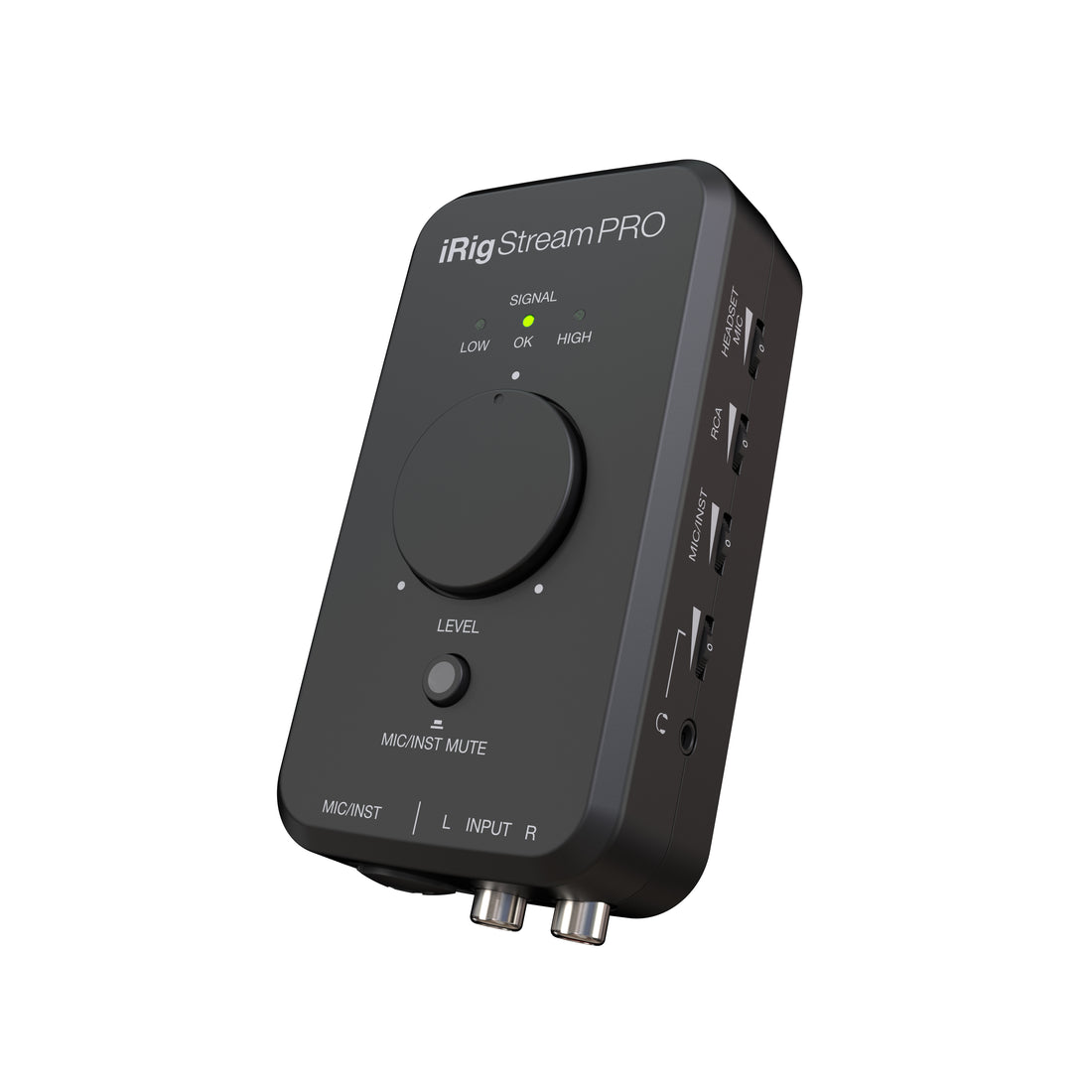

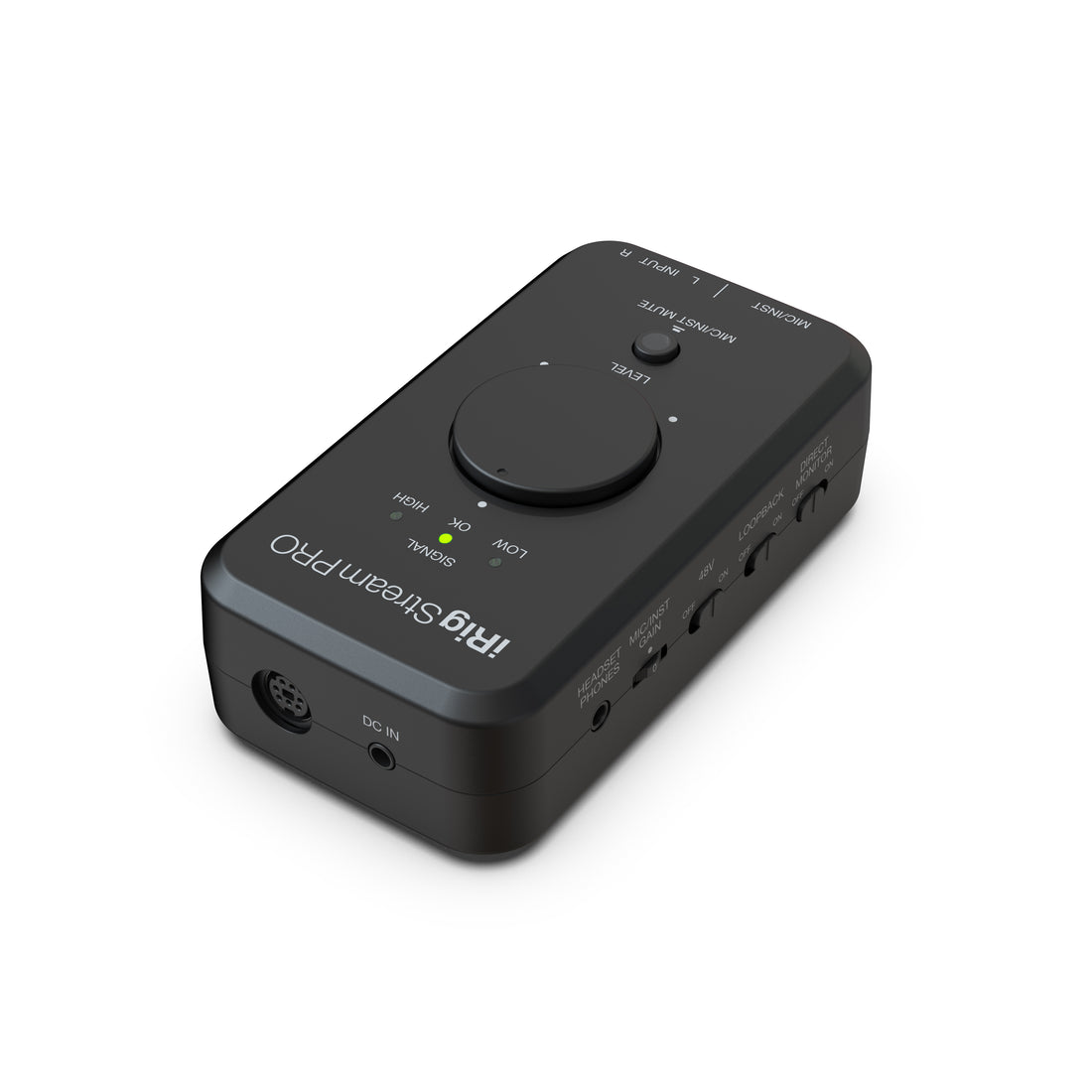

iRig Stream Pro
Connect more with the world
Professional audio interface for streaming and content creation
$199.99($243.99 incl. VAT)
24-bit/96 kHz audio interface for streaming, podcasting and recording
Works with iPhone, iPad, Android, Mac and PC
XLR / 1/4" combo input with +48 V phantom power
Stereo RCA line inputs plus TRRS headset/microphone connection
Stereo or 4-channel operation
Includes Lightning, USB-C and USB-A to mini-DIN connection cables
Works with iPhone, iPad, Android, Mac and PC
XLR / 1/4" combo input with +48 V phantom power
Stereo RCA line inputs plus TRRS headset/microphone connection
Stereo or 4-channel operation
Includes Lightning, USB-C and USB-A to mini-DIN connection cables
See Specs
Audio
Type: 2-in/2-out or 4-in/2-out
Conversion: 24-bit A/D, 24-bit D/A
Sample rates: 44.1, 48, 88.2 and 96 kHz

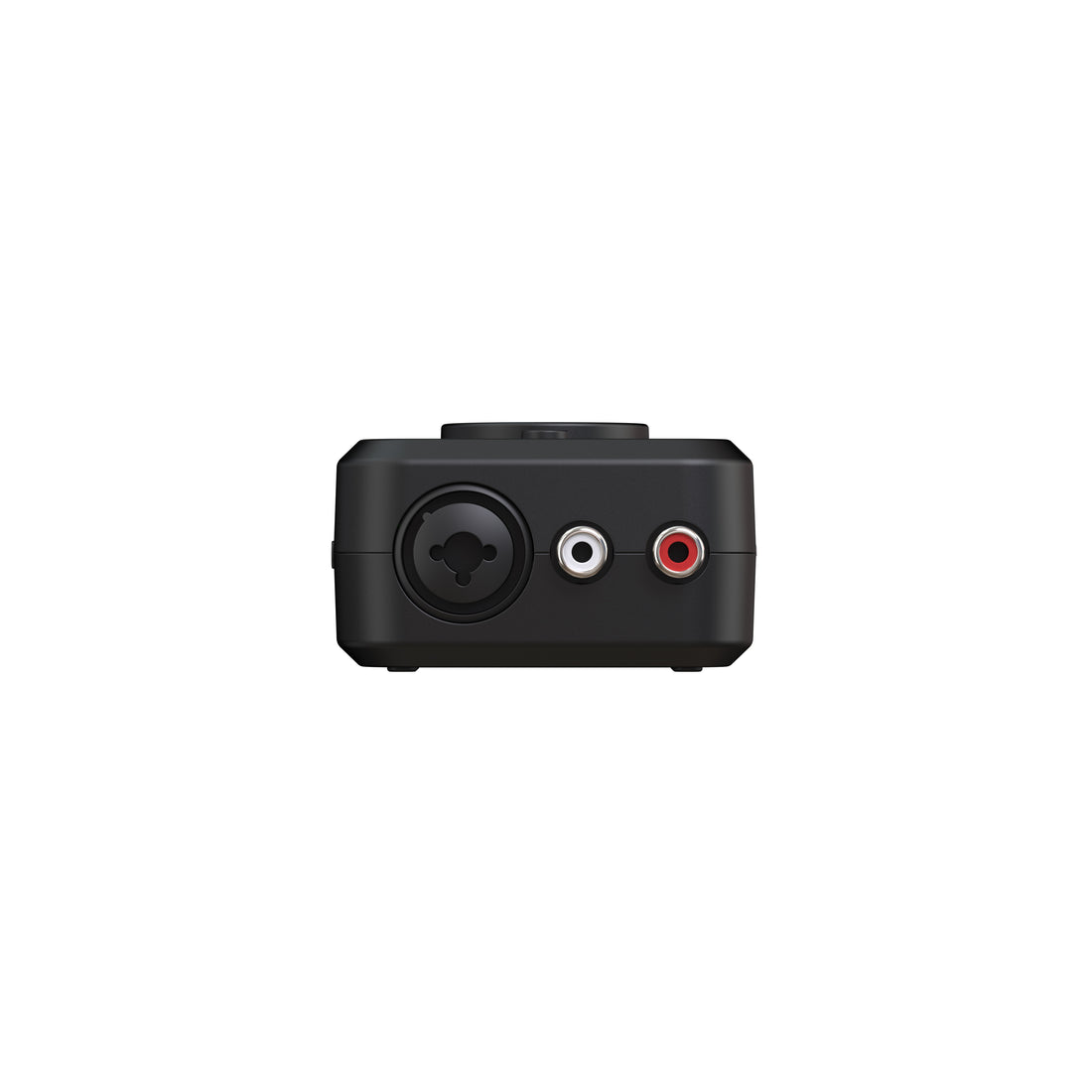

Line Input
Connector: 2 x RCA, unbalanced, Left/Right
Nominal input level: -10 dBV
Headroom: 10 dB at maximum level
Input impedance: 16.5 kOhms
Frequency response: 20 Hz–20 kHz (-1.5 dB)
Microphone Input
Connector: balanced XLR
Input level: 3.8 mV RMS to 388 mV RMS
Input impedance: approximately 2 kOhms
Analog gain range: 40 dB
Phantom power: +48 V ± 4 V
Frequency response:
20 Hz–20 kHz (-1 dB), gain at minimum
20 Hz–20 kHz (-3 dB), gain at maximum
Instrument Input
Connector: unbalanced Hi-Z 1/4" TS
Input level: 70 mV RMS to 1.8 V RMS
Input impedance: 1 MOhm
Analog gain range: 28 dB
Frequency response:
20 Hz–20 kHz (-1 dB), gain at minimum
20 Hz–20 kHz (-3 dB), gain at maximum
Headset / Phones
Connector: 1/8" TRRS, CTIA wiring standard
Supply voltage: 2.5 V
Microphone gain: adjustable
Headphone level: adjustable
Frequency response: 20 Hz–20 kHz

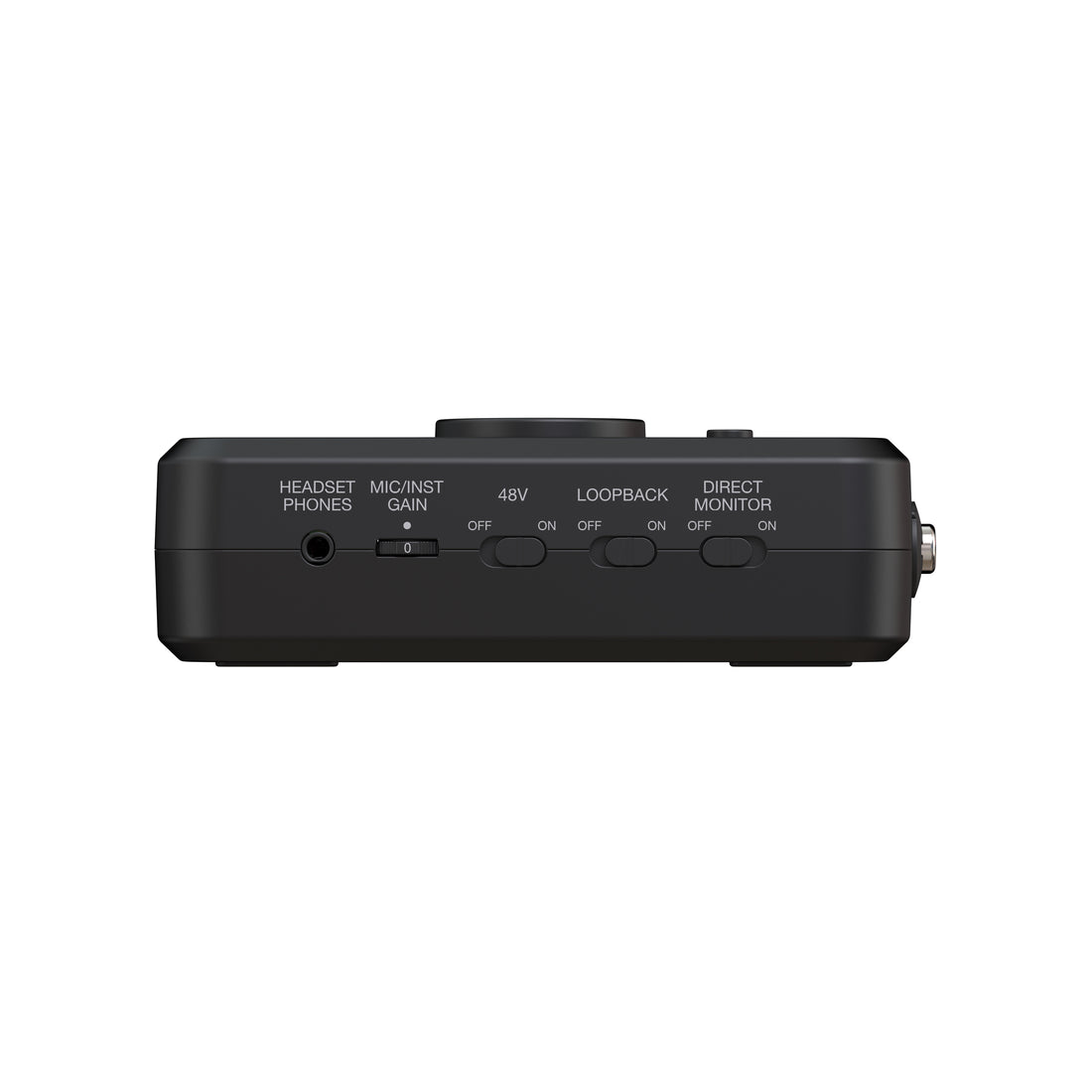

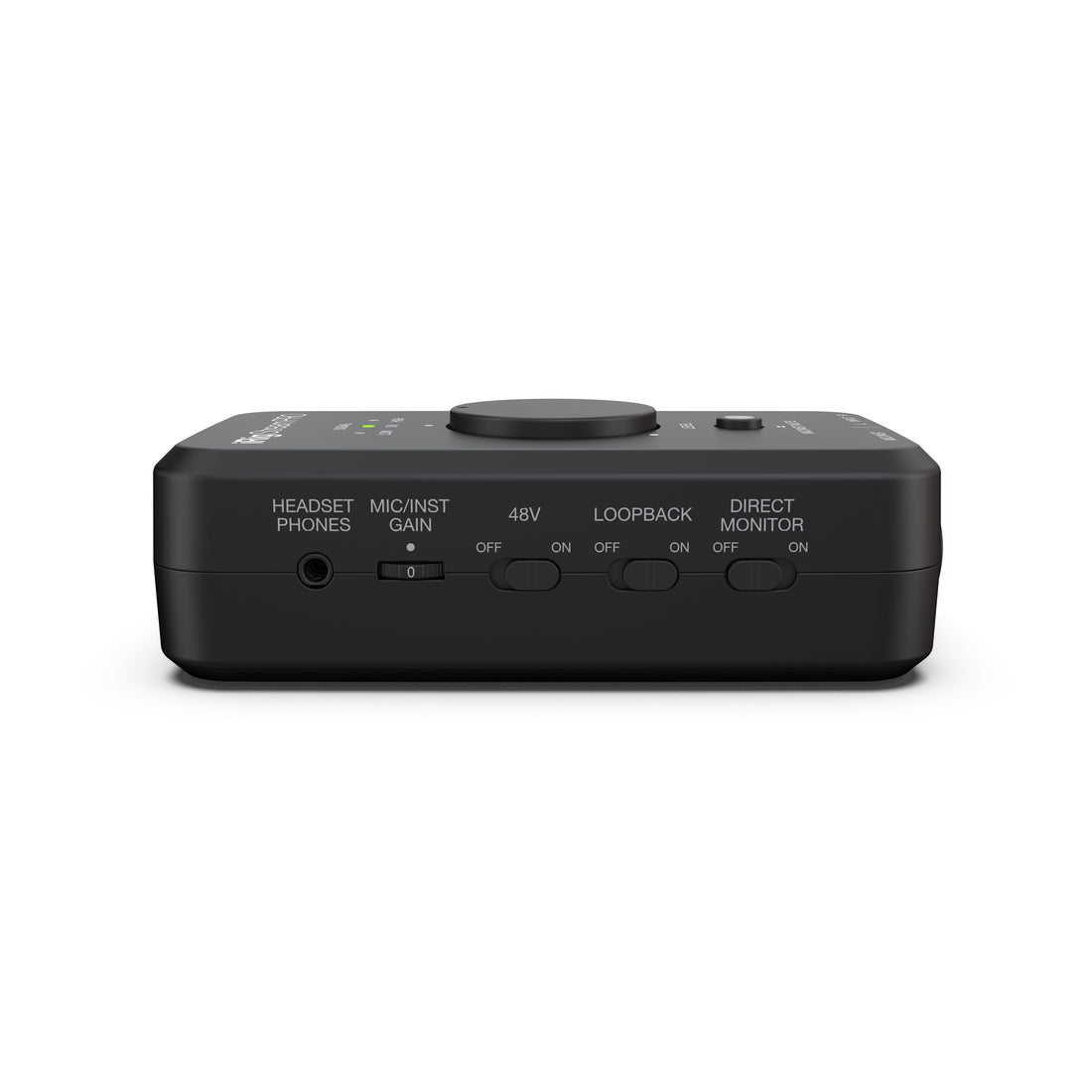

Routing / Monitoring
Stereo and multichannel operation
Loopback
Loopback+
Switchable direct monitoring
3 LED overall streaming meter
Peak meter for mic/instrument input
MUTE control for mic/instrument input
Device Connection
mini-DIN
Power
USB bus powered on computer
2 AA batteries
Optional DC power supply
48 V operation with iOS requires batteries or DC power
Compatible optional PSU can charge a connected compatible Lightning device
Battery Life
Up to 20 hours with phantom power on using alkaline batteries, with a 3.1 mA phantom-powered microphone load
Package Includes
iRig Stream Pro
Lightning to mini-DIN connection cable with charging
USB-C to mini-DIN connection cable
USB-A to mini-DIN connection cable
2 x AA batteries
Velcro strip
Dimensions / Weight
123 x 67 x 40 mm
146 g
Compatibility
iPhone and iPad
Android: Android 5 or later with USB digital audio capability. Depending on the Android device model, a Micro-USB-OTG mini-DIN cable (sold separately) may be required.
Mac: macOS 10.6 or later
Windows: Windows 10 or later. For low latency, IK Multimedia's iRig audio driver must be installed.
Click to zoom · Esc to close

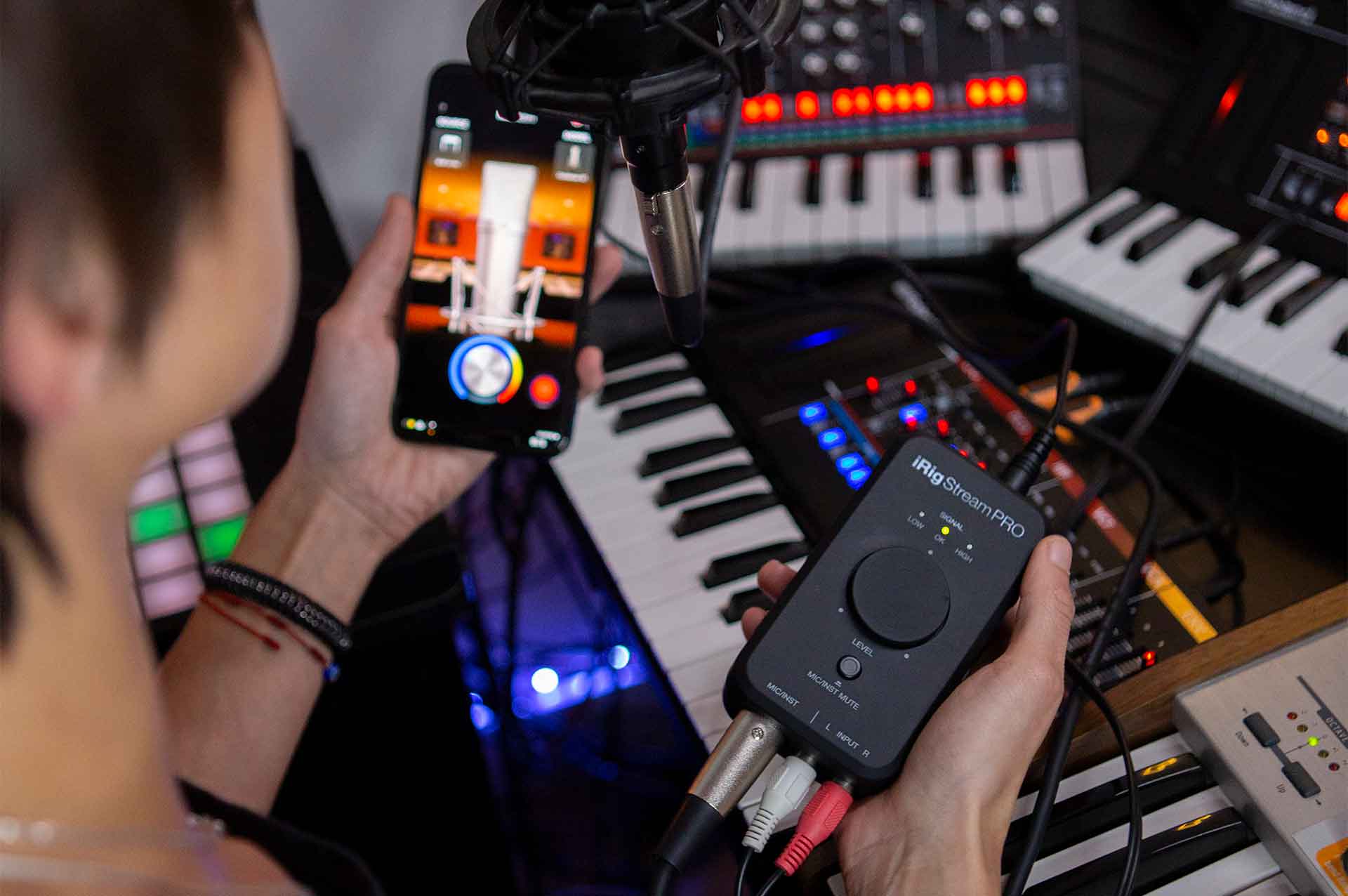

Connect more with the world

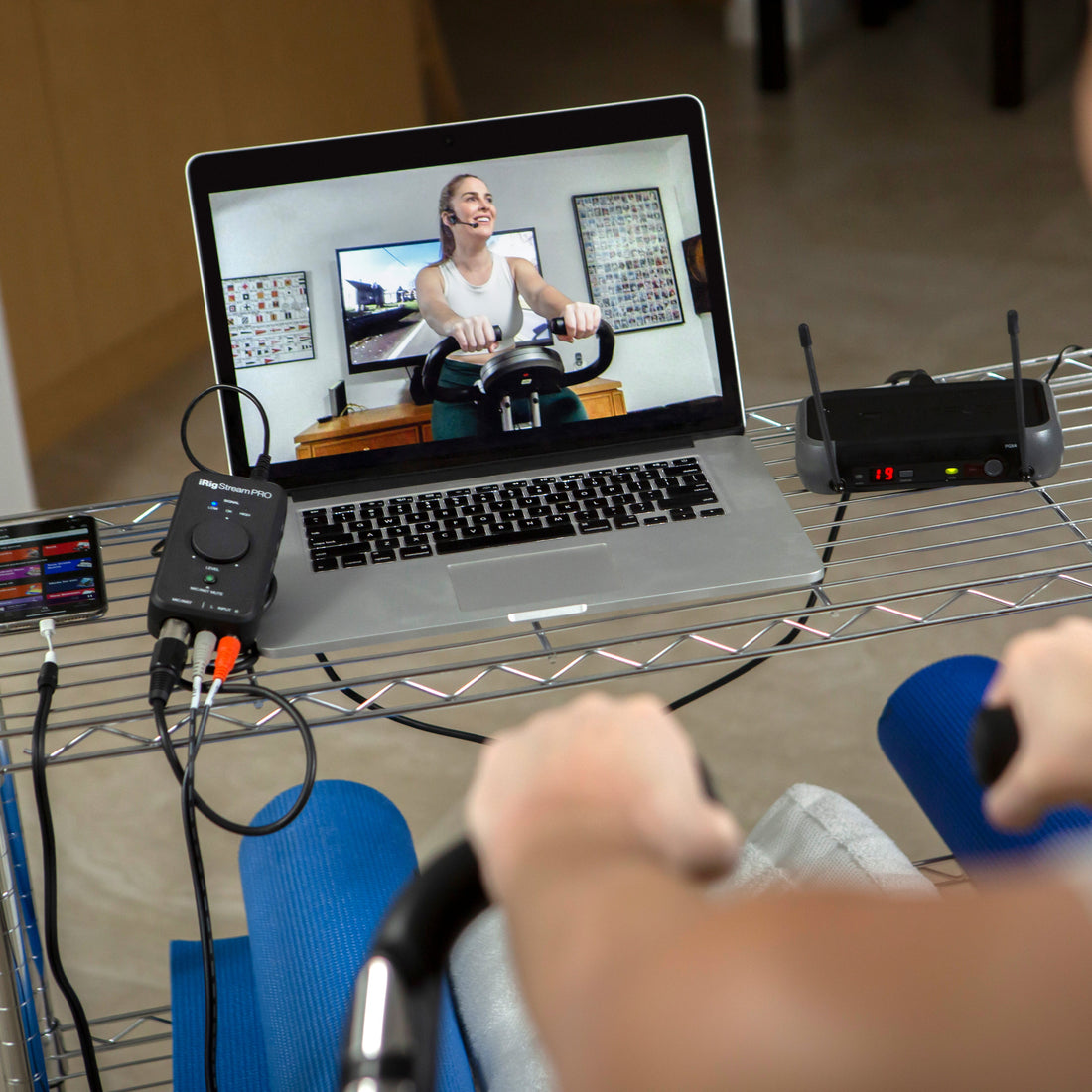

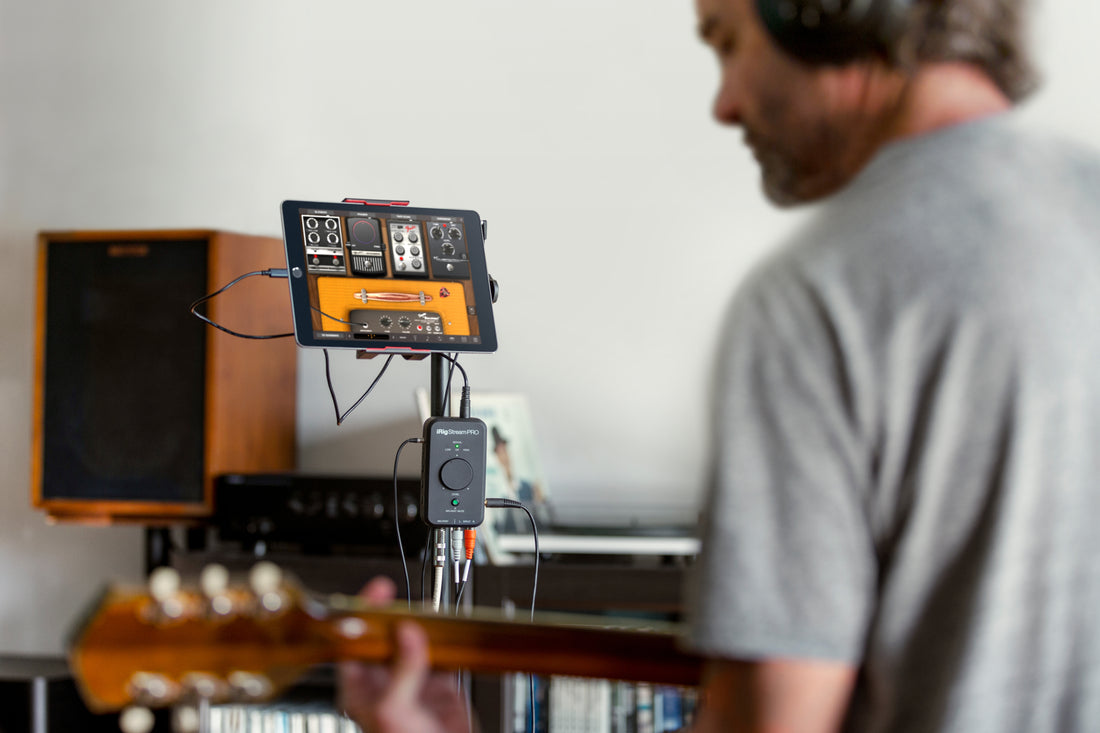

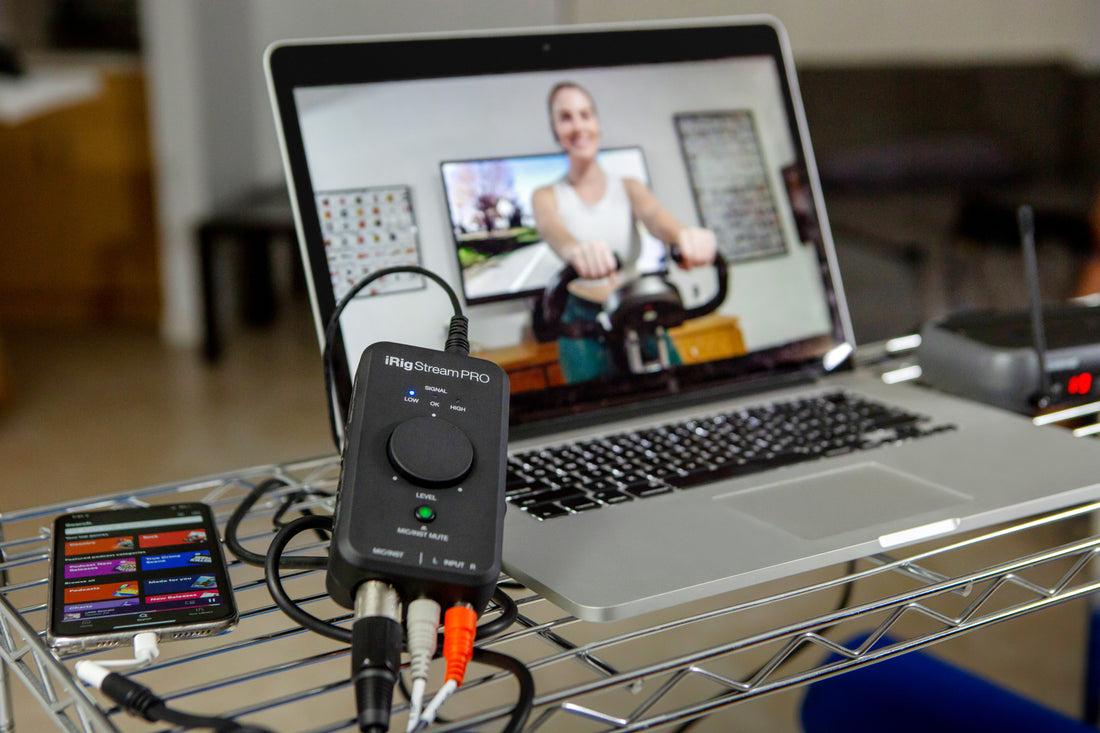

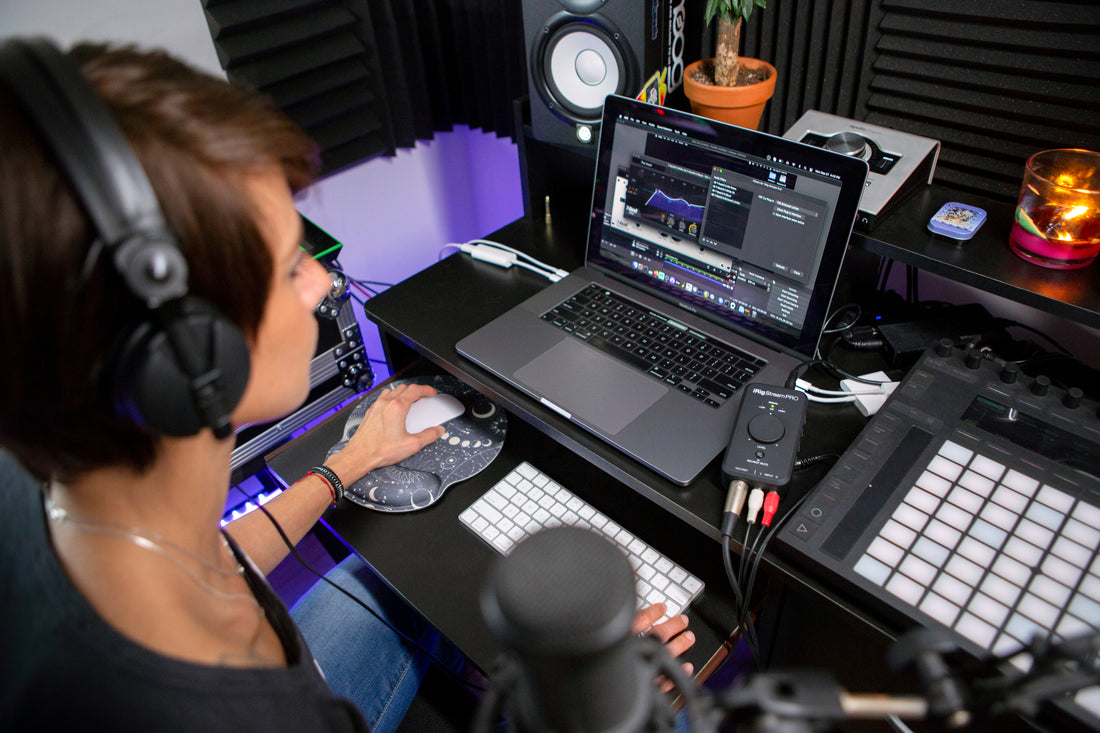

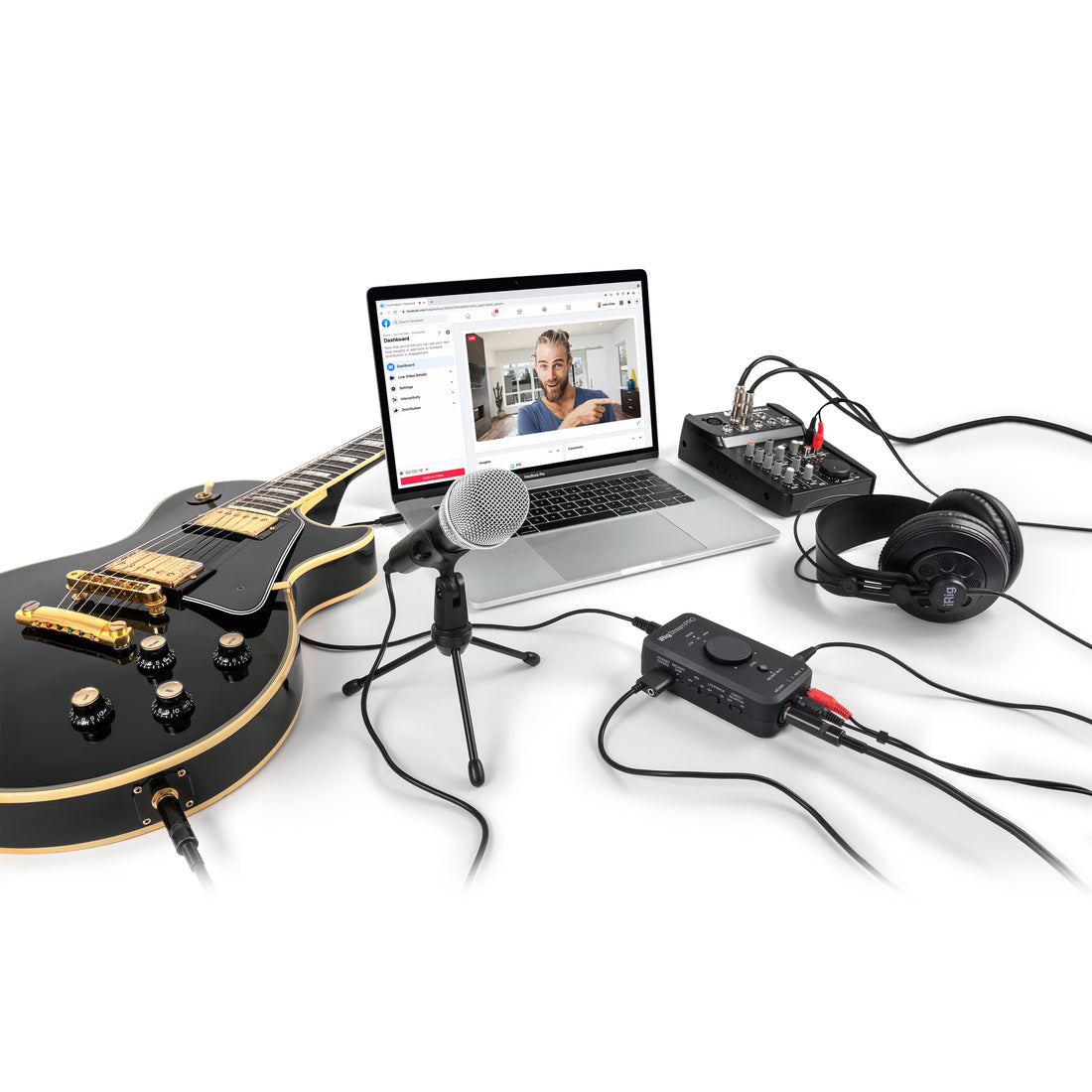

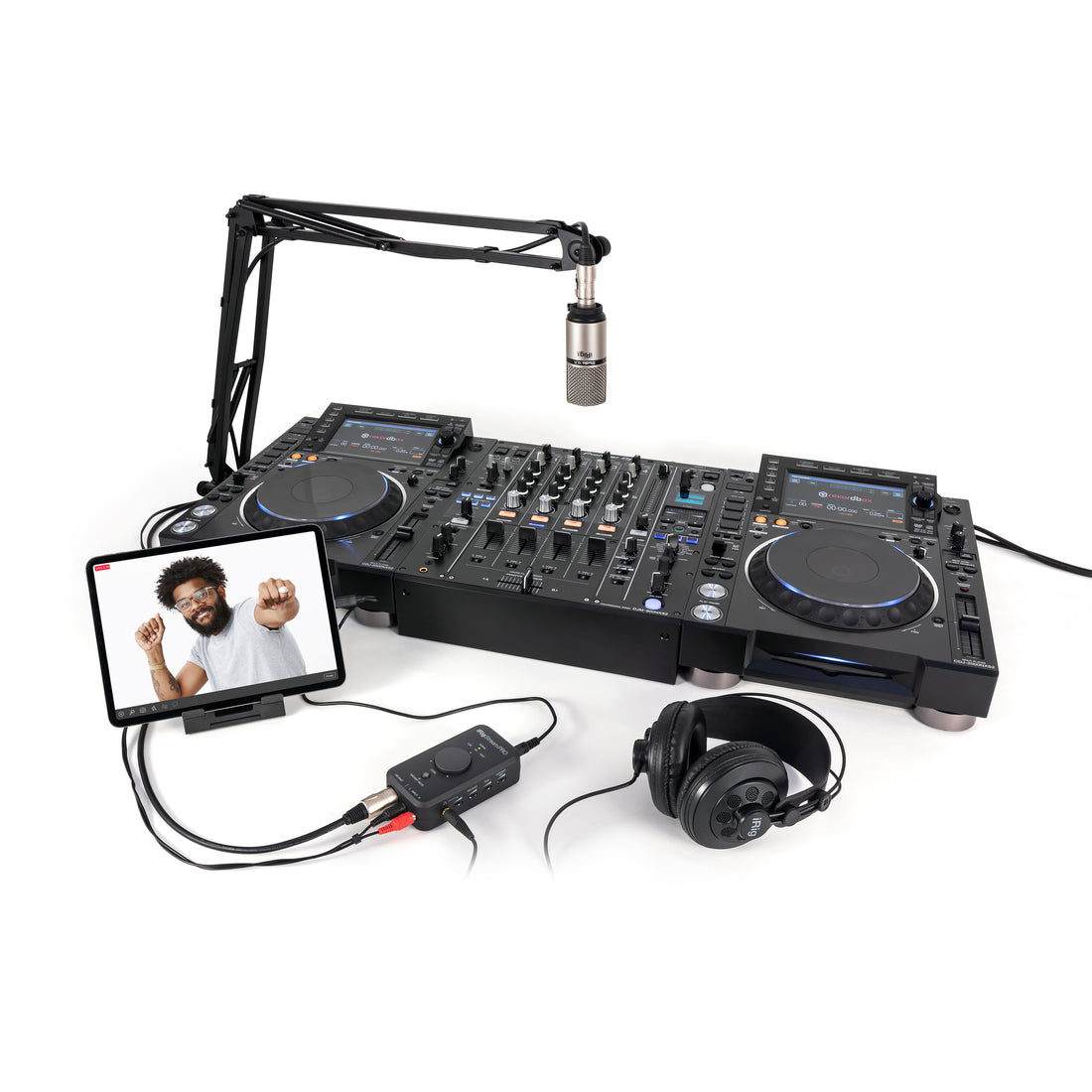

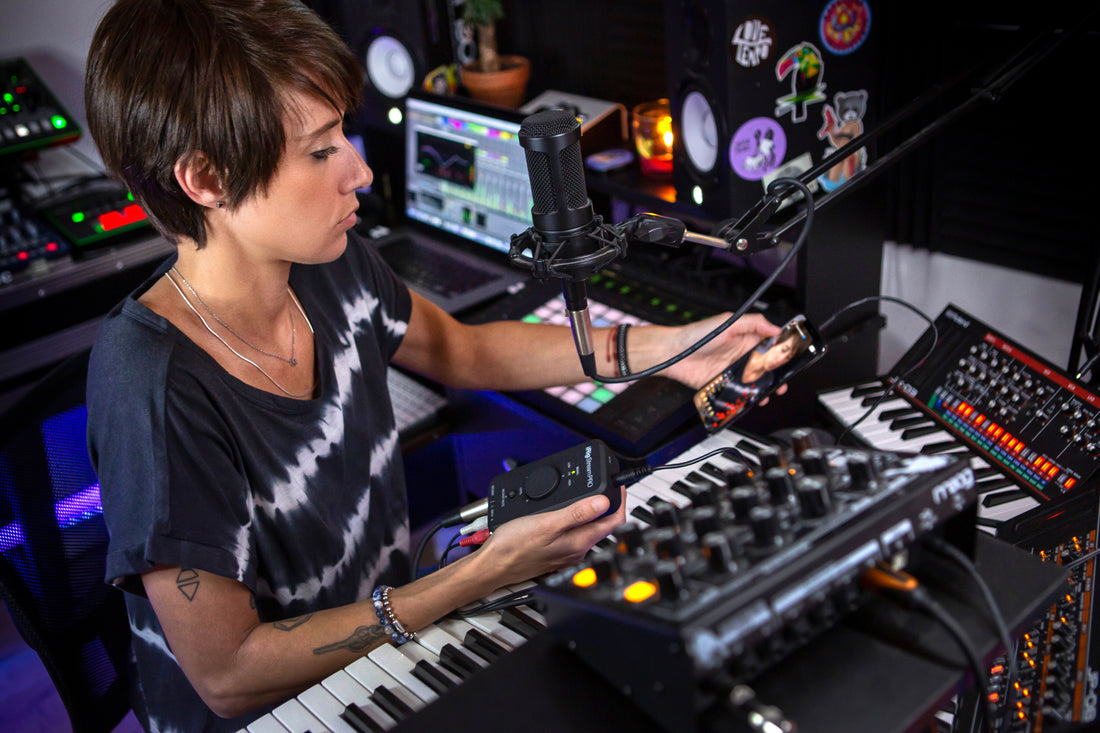

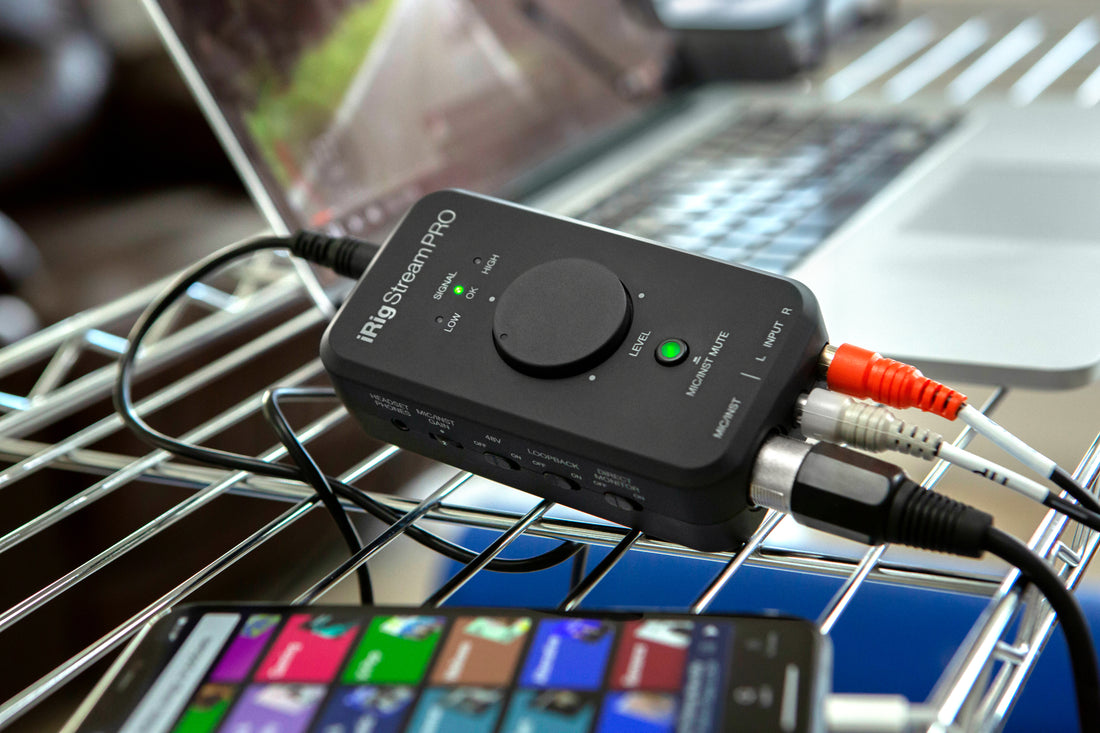

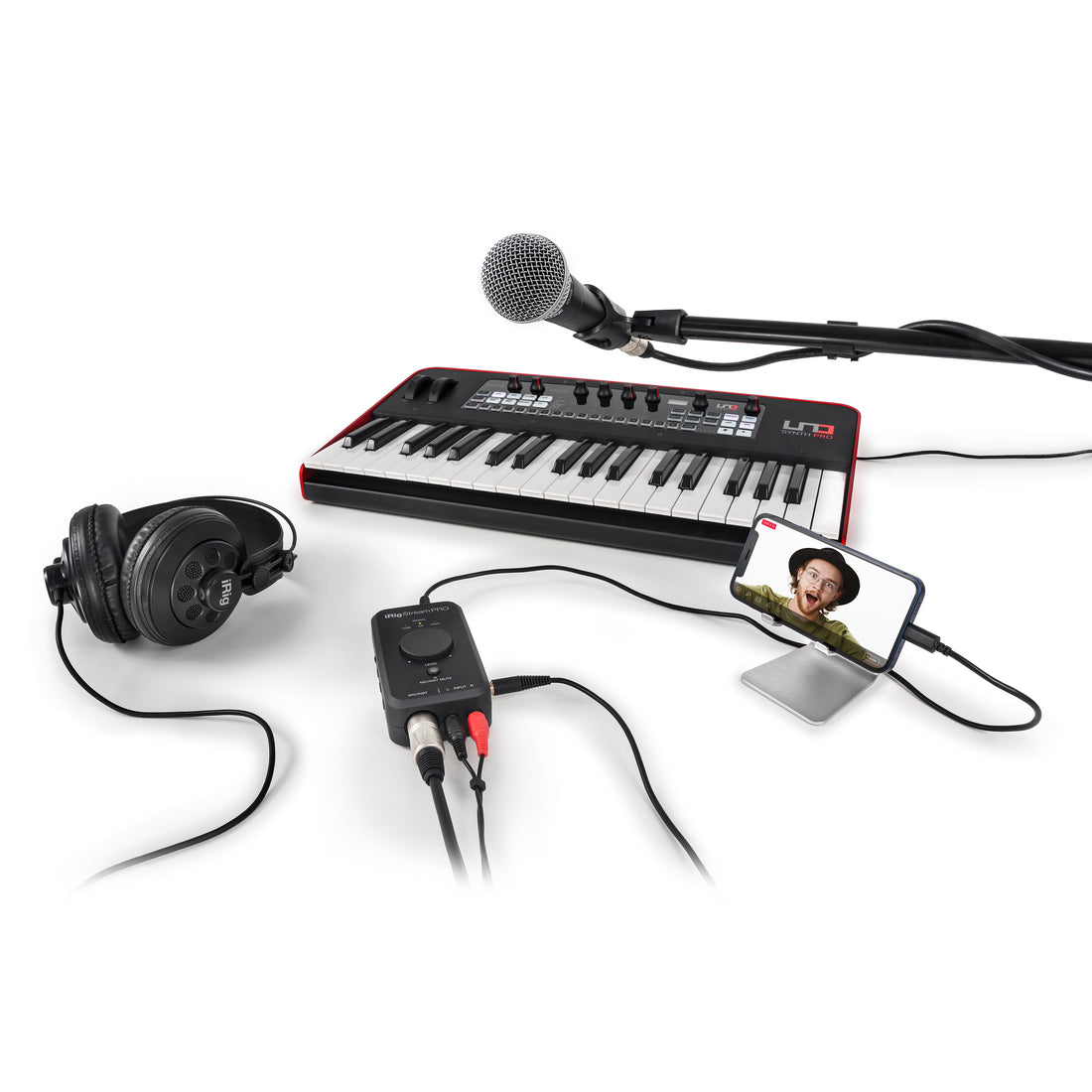

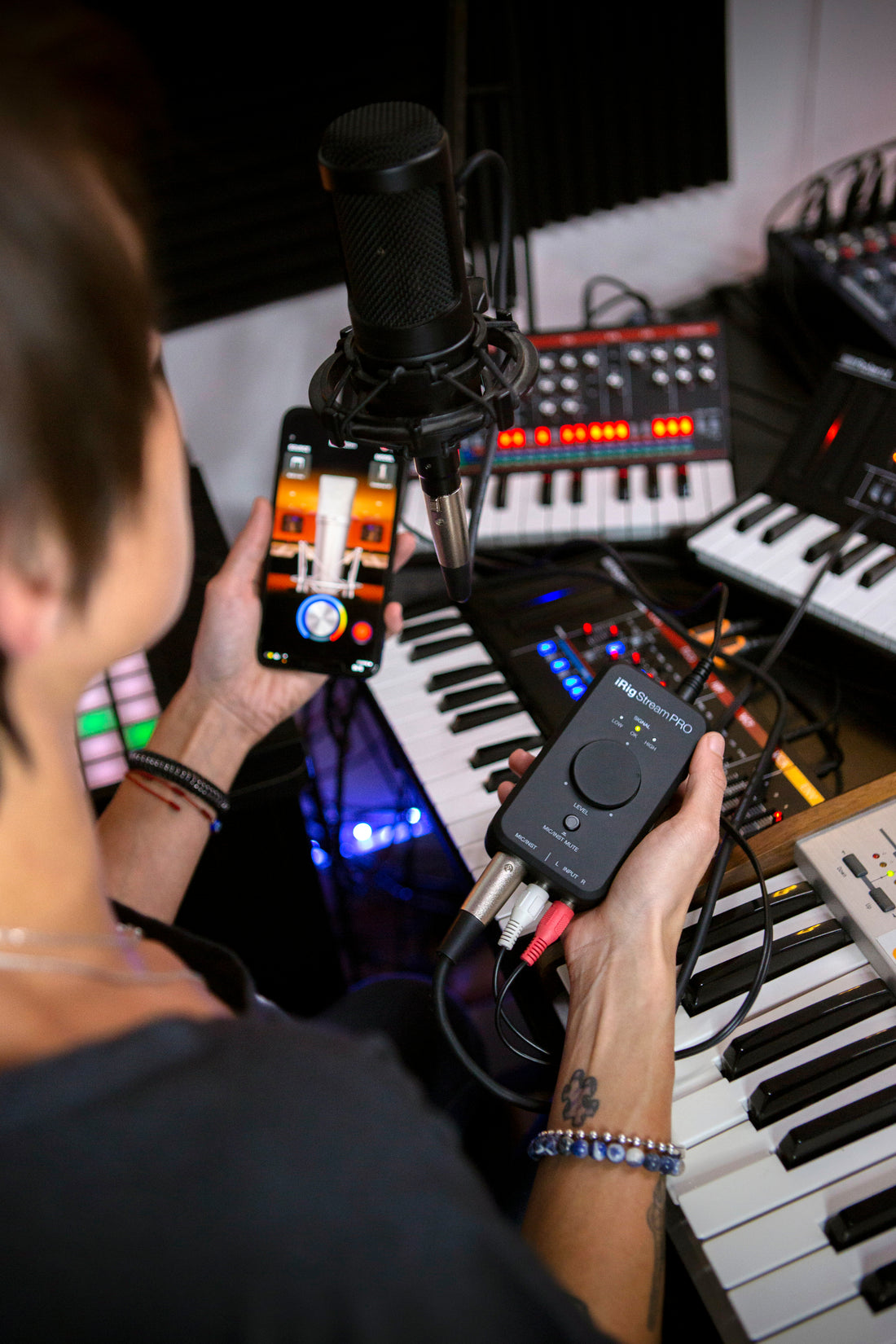

iRig Stream Pro is a portable professional audio interface for streaming and recording, bringing microphones, instruments, stereo sources and your connected device's audio together in one place. XLR and instrument inputs, stereo line connections and a TRRS headset connection make it easy to build your ideal setup.

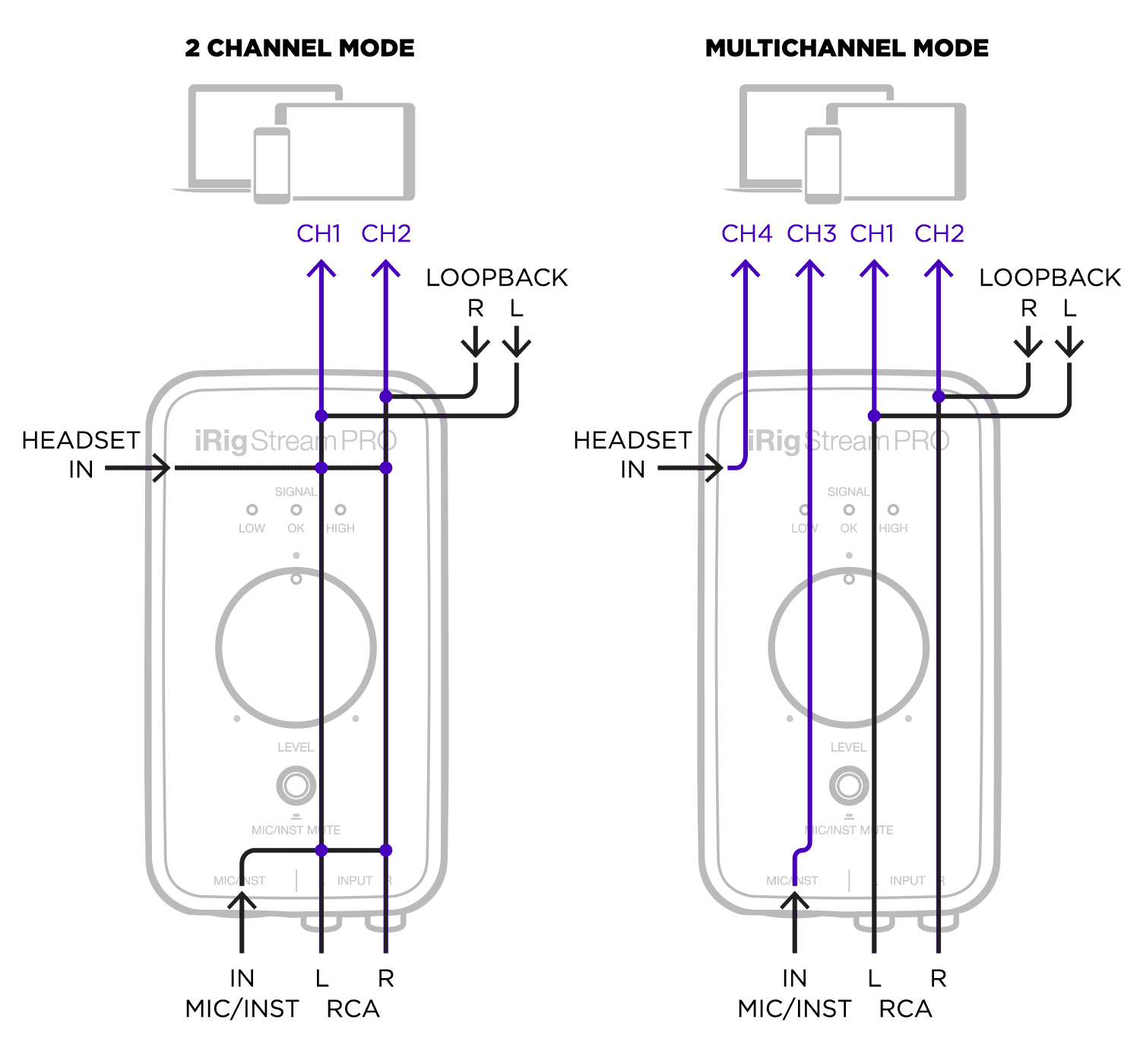

With 24-bit/96 kHz audio, switchable stereo or 4-channel operation and the Loopback+ workflow, it keeps every voice, instrument and app on your stream in pro quality, for streaming, podcasting, music and content creation.
Get started
Here's how to register your product and download your Free Bonus Content and manuals.
-
Create your IK Multimedia account
If you're not an IK registered user yet, create your IK Multimedia account. Already have one? Skip this step.
-
Register and authorize your product
Download and install the IK Multimedia Product Manager, the standalone app for registration, downloads, installation, authorization, updates, user manuals and Free Bonus Content. Already installed? Skip the download.
Run the Product Manager and click Register to register and authorize your product. Once it's registered, the Product Manager lists all your Free Bonus Content, ready to download and authorize.
Specs
Audio
Type: 2-in/2-out or 4-in/2-out
Conversion: 24-bit A/D, 24-bit D/A
Sample rates: 44.1, 48, 88.2 and 96 kHz
Line Input
Connector: 2 x RCA, unbalanced, Left/Right
Nominal input level: -10 dBV
Headroom: 10 dB at maximum level
Input impedance: 16.5 kOhms
Frequency response: 20 Hz–20 kHz (-1.5 dB)
Microphone Input
Connector: balanced XLR
Input level: 3.8 mV RMS to 388 mV RMS
Input impedance: approximately 2 kOhms
Analog gain range: 40 dB
Phantom power: +48 V ± 4 V
Frequency response:
20 Hz–20 kHz (-1 dB), gain at minimum
20 Hz–20 kHz (-3 dB), gain at maximum
Instrument Input
Connector: unbalanced Hi-Z 1/4" TS
Input level: 70 mV RMS to 1.8 V RMS
Input impedance: 1 MOhm
Analog gain range: 28 dB
Frequency response:
20 Hz–20 kHz (-1 dB), gain at minimum
20 Hz–20 kHz (-3 dB), gain at maximum
Headset / Phones
Connector: 1/8" TRRS, CTIA wiring standard
Supply voltage: 2.5 V
Microphone gain: adjustable
Headphone level: adjustable
Frequency response: 20 Hz–20 kHz
Routing / Monitoring
Stereo and multichannel operation
Loopback
Loopback+
Switchable direct monitoring
3 LED overall streaming meter
Peak meter for mic/instrument input
MUTE control for mic/instrument input
Device Connection
mini-DIN
Power
USB bus powered on computer
2 AA batteries
Optional DC power supply
48 V operation with iOS requires batteries or DC power
Compatible optional PSU can charge a connected compatible Lightning device
Battery Life
Up to 20 hours with phantom power on using alkaline batteries, with a 3.1 mA phantom-powered microphone load
Package Includes
iRig Stream Pro
Lightning to mini-DIN connection cable with charging
USB-C to mini-DIN connection cable
USB-A to mini-DIN connection cable
2 x AA batteries
Velcro strip
Dimensions / Weight
123 x 67 x 40 mm
146 g
Compatibility
iPhone and iPad
Android: Android 5 or later with USB digital audio capability. Depending on the Android device model, a Micro-USB-OTG mini-DIN cable (sold separately) may be required.
Mac: macOS 10.6 or later
Windows: Windows 10 or later. For low latency, IK Multimedia's iRig audio driver must be installed.
