Specs

UNO SYNTH Specifications

Synthesis

  • Type: Analog
  • Polyphony: 1 voice
  • Synthesis structure: 2 VCO, Noise generator, 1 VCF, 1 VCA, 2 EG, 1 LFO
  • VCO variable shape waveforms: Triangle, Sawtooth, Pulse with variable pulse width
  • VCF: 2-pole resonant multimode filter with Cutoff, Resonance, Env Amount, Drive
  • LFO: 7 shapes (Sine, Triangle, Square, Saw Up, Saw Down, Random, Sample & Hold), Rate
  • Modulation Destinations: Amp, Pitch, Filter, PWM, Waveshape (PWM and Waveshape via MIDI CC)
  • EG: 2 for Filter and Amplitude (full ADSR is available via MIDI)

Preset

  • 100 Presets (20 factory non-writable, 80 user)

Keyboard and controls

  • 7 Knobs (4 matrix, 3 fixed)
  • 13 Selectable scales (Chromatic, Major, Minor, Major Pentatonic, Minor Pentatonic, Major Blues, Minor Blues, Harmonic Minor, Mixolydian, Dorian, Klezmer, Hungarian Gypsy, Spanish Gypsy, Japanese, South-East Asian)

Sequencer

  • 16-step sequencer
  • Real-time and step recording with parameter recording
  • Real-time parameter recording per-step
  • 3 directions: Forward, Backward, Forward and Backward
  • Selectable length between 1 and 16 steps

Arpeggiator

  • 10 Mode Arpeggiator
  • 4 octave range
  • Hold control

Effects

  • Delay
  • Dive, Scoop, Vibrato, Wah, Tremolo

Connections

  • Audio Out: Mini-jack 3.5mm stereo (mono summed)
  • Audio In: Mini-jack 3.5mm stereo (mono summed)
  • 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
  • 1 Micro USB*

Power

Package includes

  • UNO Synth
  • 1x Micro USB to USB-A cable (60cm/23.62")
  • 2x 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
  • 4x AA batteries (Alkaline)

Dimensions

  • Size: 25.6cm/10.1" x 15cm/5.91" x 5cm/1.96"
  • Weight: 400g/14.1oz (excluded batteries)

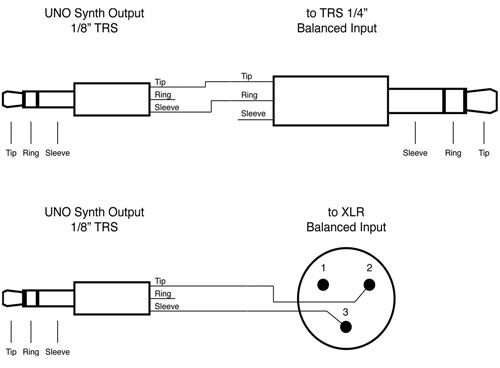

*USB power has inherent ground noise, so when connecting the UNO Synth directly to your computer via USB, you may hear more noise and interference than when the synth is connected to a USB wall charger or running via batteries. With the direct computer connection, you can reduce the USB ground noise and other interference by either using a USB isolator or a custom TRS cable into a balanced input on your preamp or audio interface where the ground is not connected at the balanced input side.

UNO SYNTH

UNO Synth Editor Compatibility

UNO Synth Editor requires UNO Synth with firmware version 1.1.1 or later.

iOS devices

Compatible with 64-bit iPhone, iPad, and iPod touch. iOS 10 or later is required.

Computers

64-bit application. Requires a 64 bit CPU and Operating System.

Mac® (64-bits)

Minimal: macOS 10.11 or later.

Windows® (64-bits)

Minimal: Windows 8 or later.
